- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Qualified to AEC-Q100 Grade1
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two I/O lines and a power line
- Low capacitance: 0.3pF typical
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- Automobile USB
- MMC/SD Port
- Automobile Video Ports

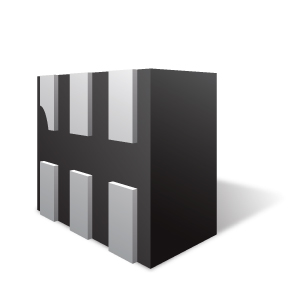

- SLP1210N6 Package: 1.2 x 1.0 x 0.58 mm - 3,000 pcs
