RClamp0521ZA
RClamp0521ZA TVS diodes are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers and other portable electronics. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- High ESD withstand voltage: +/-17kV (contact) per IEC 61000-4-2 and +/- 25kV (air) per IEC 61000-4-2
- Ultra-small package
- Protects one data line
- Low ESD clamping voltage
- Working voltage: 5V
- Low capacitance: 0.50pF maximum
- Low leakage current
- Low dynamic resistance
- Solid-state silicon-avalanche technology
- Touchscreen controllers
- USB 3.0 / USB Type-C
- MiPi/MDDI
- MHL
- FM antenna
- ウェアラブル
アプリケーション
Packaging

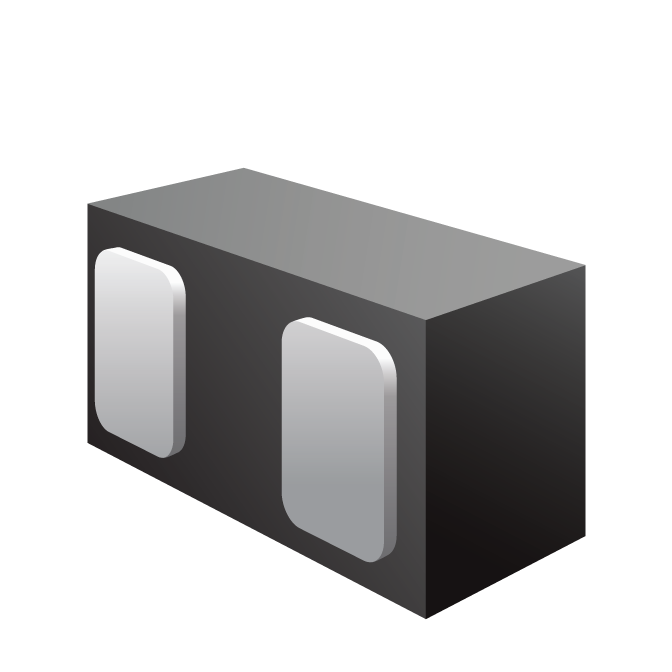

- DFN 0.6 x 0.3 x 0.25 mm 2-Lead
Order Codes
- RClamp0521ZATFT
Pb(Lead)-Free/RoHS-Green Info
