RClamp2261ZA
RClamp®2261ZA is a low capacitance transient voltage suppressor (TVS) that is designed to protect sensitive electronics from damage or latch-up due to electrical overstress (EOS), voltage surges and electrostatic discharge (ESD). RClamp2261ZA offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
Features
- ESD withstand voltage: +/-25kV (contact) per and +/- 30kV (air) per IEC 61000-4-2
- Surge current: 18A (tp = 8/20μs) per IEC 61000-4-5
- Ultra-small package
- Protects one data line
- Low ESD clamping voltage
- Working voltage: ±22V
- Low capacitance: 0.35pF (typ.)
- Low dynamic resistance: 0.22Ω (typ.)
- Solid-state silicon-avalanche technology
- USB Type-C
- Near Field Communication (NFC) lines
- RF antenna
- FM antenna
- Internet of Things (IoT) devices
アプリケーション
Packaging

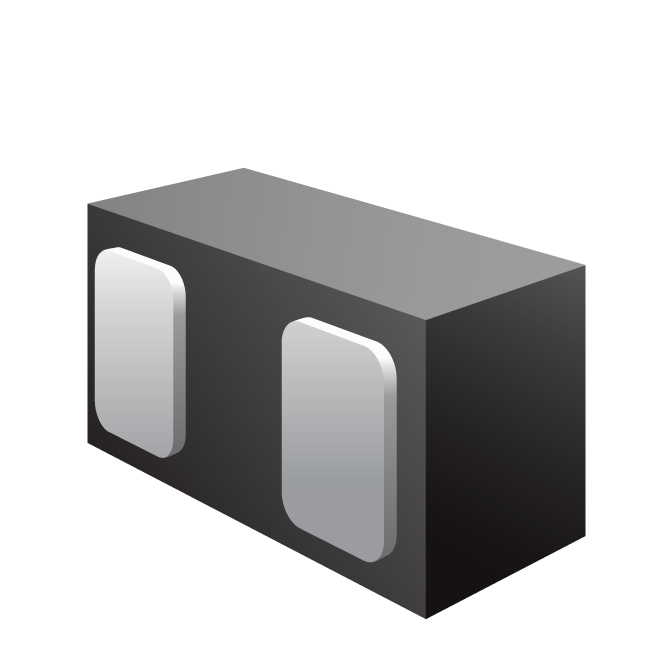

- DFN 0.60 x 0.30 x 0.25 mm 2-lead
Order Codes
- RClamp2261ZA.F
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2261ZA
Part Description
RAILCLAMP® 1 LINE 22V EOS PPROTECTION
# of leads
2
Package Type
DFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
mySemtech
