RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±17kV (air), ±12kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- Low clamping voltage
- Low operating voltage: 5V
- Solid-state silicon-avalanche technology
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- High Definition Multi-Media Interface (HDMI)
- Digital Visual Interface (DVI)
- DisplayPortTM Interface
- MDDI Ports
- PCI Express
- eSATA Interfaces

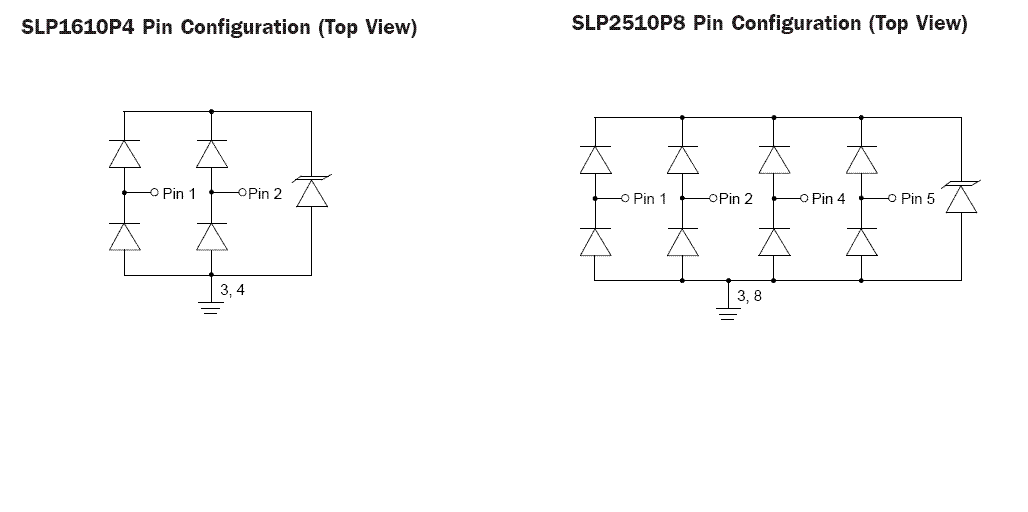

- SLP1610P4 6-pin package (1.6 x 1.0 x 0.58mm)
- SLP2510P8 10-pin package (2.5 x 1.0 x 0.58mm)
- 3000 pcs, Tape and Reel
