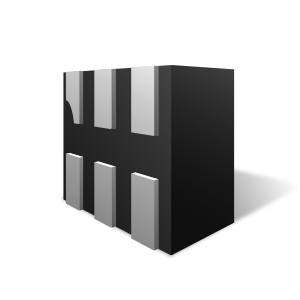

RClamp0582N
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two I/O lines and a power line
- Low capacitance: 0.2pF typical
- Low clamping voltage
- AEC-Q100 Qualified Part
- Solid-state silicon-avalanche technology
- USB
- MMC Port
- Serial ATA
- Video Port
アプリケーション
Packaging
- SLP1210N6
Order Codes
- RClamp0582N.TCT- Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0582N
Part Description
LOW CAPACITANCE TVS DIODE ARRAY
# of leads
6
Package Type
SLP1210N6
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
