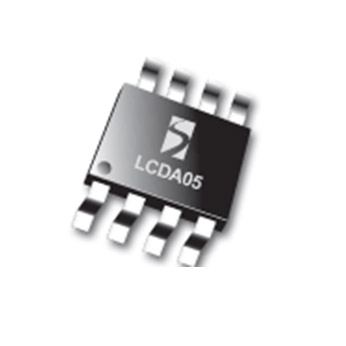

The LCDA series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. Each device will protect two high-speed lines.
- 5 V working voltage
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)

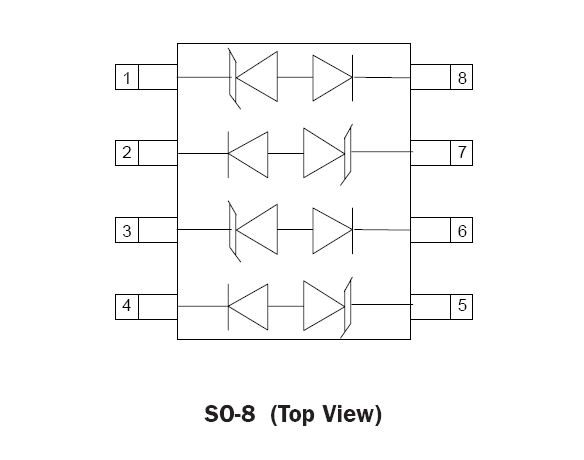

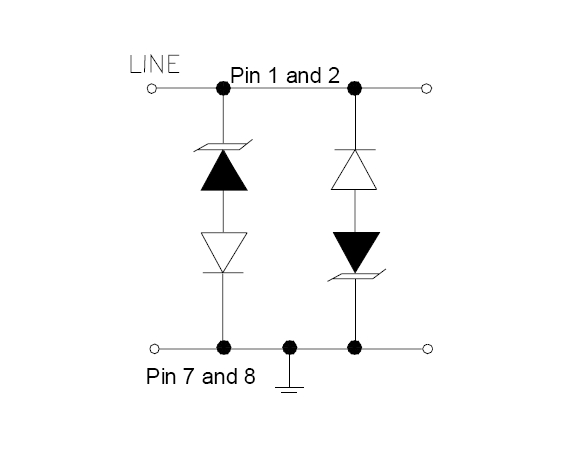

- Protects two I/O lines
- Low capacitance for high-speed data lines
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- High-speed data lines
- Microprocessor-based equipment
- Universal serial bus (USB) port protection
- Notebooks, desktops, and servers
- LAN/WAN equipment
- 95/Tube Tape & Reel
- 500 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
