概要

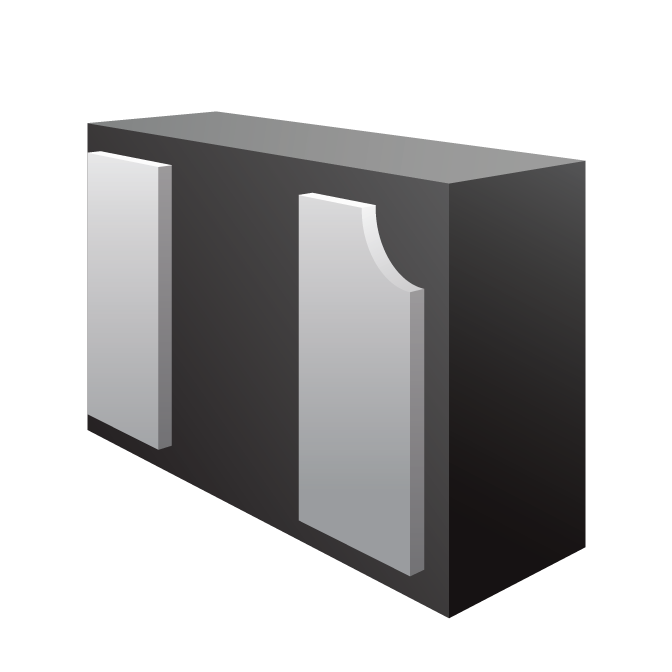

RClamp®3311P is an ultra low capacitance ESD protection device specifically designed to protect highspeed Ethernet lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
Features
- Transient Protection to
- IEC 61000-4-2 (ESD) ±27kV (air), ±25kV (contact)
- IEC 61000-4-5 (lightning) 10A (8/20µs)
- Protects one high-speed data line
- Low capacitance: 0.25pF maximum (I/O to ground)
- Working voltage: 3.3V
- Low leakage current
- Solid-state silicon-avalanche technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP3311P Datasheet | 2023-09-18 | | |
アプリケーション
- 2.5GbE
- 5GbE
- 10GbE
