RClamp3391ZC

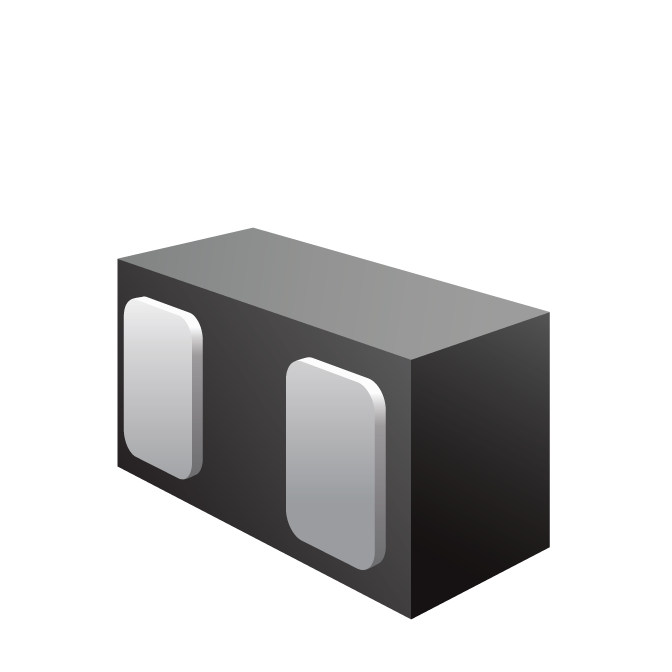

RClamp®3391ZC is an ultra-low capacitance FemtoClamp® ESD protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- ESD and EOS Protection
- ESD withstand voltage
- IEC 61000-4-2 (ESD) ±8kV (contact), ±15kV (air)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Ultra-Low capacitance: 0.20pF Maximum
- Small Pacakge (0.60 x 0.30 x 0.25mm)
- Protects one high-speed data line
- Working voltage: 3.3V
- Low reverse leakage current: 50nA max at VR=3.3V
- Low insertion loss: 0.28dB (Typical) at 5GHZ
- Large operating bandwidth: 14.6GHz
- Thunderbolt 3
- USB 3.1 and USB 3.0
- HDMI 1.4 and HDMI 2.0
- USB Type-C
- HD-SDI
- 10GbE
アプリケーション
Packaging
- DFN 0.60x0.30x0.25mm-2 Lead
Order Codes
-
RClamp3391ZCTFT
-
RClamp3391ZCTNT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP3391ZC
Part Description
FEMTO FARAD RAILCLAMP 1-LINE, 200FF ESD AND EOS PROTECTION
# of leads
2
Package Type
DFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
