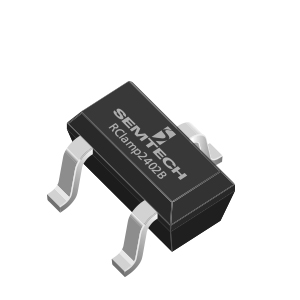

RClamp2402B
RailClamps are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Designed to replace polymer TVS
- Protects up to two I/O lines
- Ultra-Low Line-to-Line capacitance (<0.5pF Typical)
- No insertion loss to >3.0GHz
- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 24.0V
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
- High-Definition Multimedia Interface (HDMI)
- USB 2.0 & Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
アプリケーション
Packaging

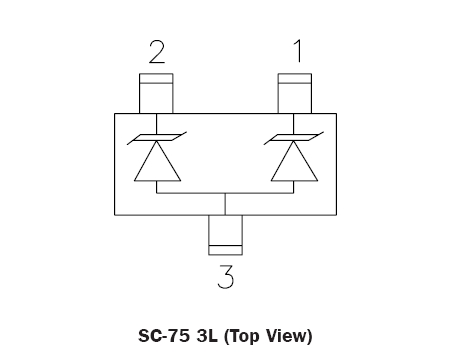

- SC-75
- 3000 pcs.Tape & Reel
Order Codes
- RClamp2402B.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2402B
Part Description
ULTRA-LOW CAPACITANCE TVS FOR ESD AND CDE PROTECTION
# of leads
3
Package Type
SOT-523
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
