RClamp2451P
RailClamp® TVS diodes are ultra low capacitance devices designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD), electrical fast transients (EFT) and electrical overstress (EOS). They are designed for use on high speed ports in applications such as cell phones, notebook computers and other portable electronics. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
Features
- High ESD withstand voltage: +/-10kV (contact) and +/-18kV (air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- Protects one high speed data line
- Low ESD clamping voltage
- Working voltage: +/- 24V
- Low capacitance: 0.38pF Typical
- Low leakage current
- Low dynamic resistance: 0.19Ω
- Solid-state silicon-avalanche technology
- LoRa transceivers
- Near Field Communication (NFC) lines
- RF signal lines
- FM antenna
アプリケーション
Packaging

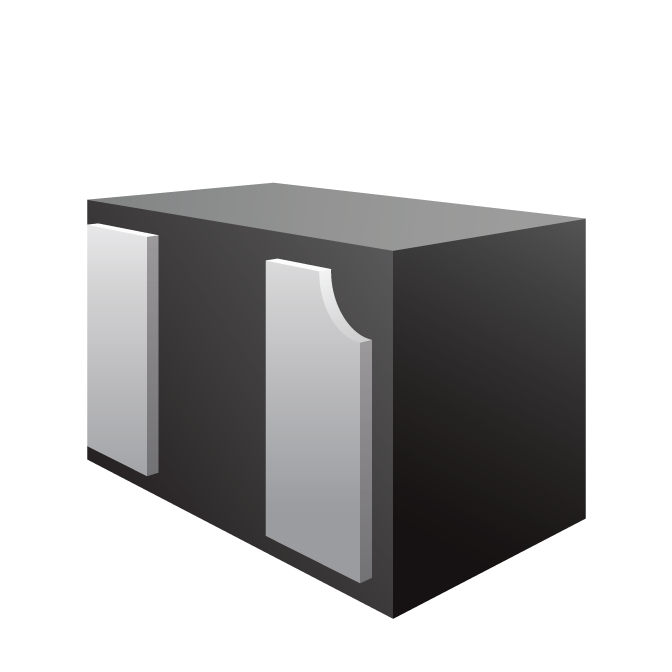

- DFN 1.0 x 0.6 x 0.55mm 2-Lead
Order Codes
- RClamp2451P.TNT
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
