RClamp1521P
The RailClamp family is a series of ultra low capacitance Transient Voltage Suppressors (TVS) designed to protect high speed data interfaces.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

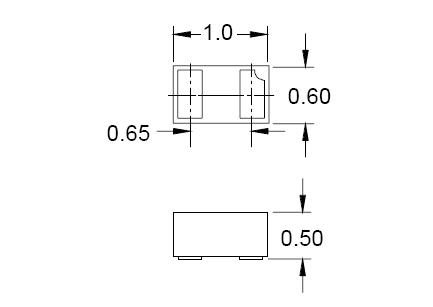

- Ultra-small package (1.0 x 0.6 x 0.5mm)
- Protects one data or I/O line
- Low capacitance: 0.3pF typical
- Low clamping voltage
- Low operating voltage: 15V
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Cellular Handsets & Accessories
- USB Ports
- PCI Express
- Serial ATA
アプリケーション
Packaging

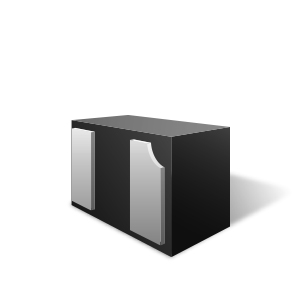

- SLP1006P2
- 3000 pcs. tape & reel
Order Codes
- RClamp1521P.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP1521P
Part Description
ULTRA-LOW CAPACITANCE 1-LINE ESD PROTECTION
# of leads
2
Package Type

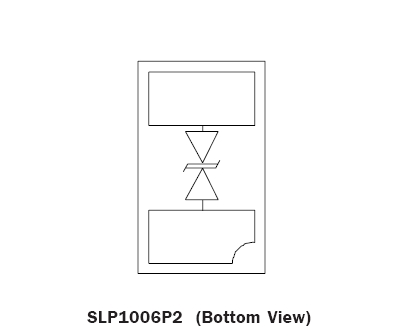

SLP1006P2
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
