For the hundreds of electronic circuits in a vehicle, the automotive Ethernet is becoming a popular choice due to its ability to enable faster communication, flexibility and cost-effectiveness. In the harsh automotive environment, careful design and proper selection of transient voltage suppressor (TVS) diodes are essential for safeguarding the high-speed, high bandwidth Ethernet interfaces. To protect automotive's growing Ethernet bus speeds, ultra-low capacitance with low voltage clamping capability is necessary. Semtech's industry-leading TVS protection devices safeguard high-speed automotive Ethernet from electrostatic discharge (ESD) and other overvoltage transients. With the leading edge process technologies and applications, Semtech is leading the way in automotive circuit protection.
Low Capacitance TVS for Automotive Applications

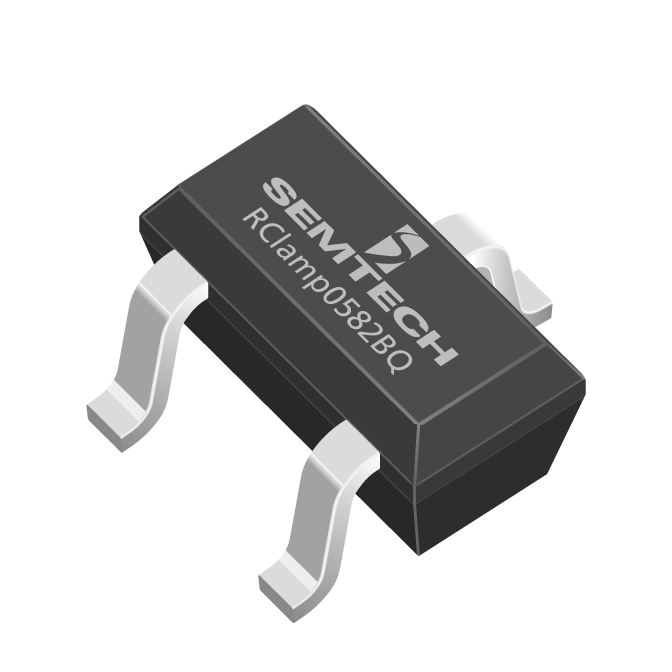

Low Capacitance RailClamp® 2-Line Surge and ESD Protection
EMIClamp 2-Line Interface Circuit for Automotive Ethernet
