RClamp3346P
The RClamp®3346P provides ESD protection for highspeed data interfaces. It features a high maximum ESD withstand voltage of ±17kV contact and ±20kV air discharge per IEC 61000-4-2. RClamp3346P is designed to minimize both the ESD peak clamping and the TLP clamping.
Features
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±17kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects six high-speed lines
- Low capacitance: 0.65pF Maximum (I/O to Ground)
- Low ESD clamping voltage
- Low dynamic resistance: 0.15 Ohms (Typ)
- Qualified to AEC-Q100
- Solid-state silicon-avalanche technology
- USB 3.0
- eSATA
- Display Port
- LVDS
アプリケーション
Packaging

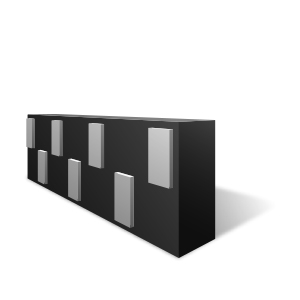

- SGP2708N7 7-pin package (2.7 x 0.8 x 0.50mm)
Order Codes
- RClamp3346P.TNT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP3346P
Part Description
LOW CAPACITANCE RCLAMP 6-LINE ESD PROTECTION
# of leads
7
Package Type
SGP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
