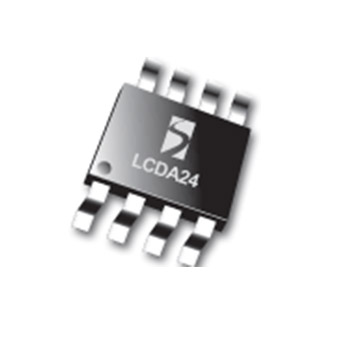

LCDA24
The LCDA series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. Each device will protect two high-speed lines.
Features
- 24 V working voltage
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- Protects two I/O lines
- Low capacitance for high-speed data lines
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- High-speed data lines
- Microprocessor-based equipment
- Universal serial bus (USB) port protection
- Notebooks, desktops, and servers
- Instrumentation
- LAN/WAN equipment
- Peripherals
アプリケーション
Packaging
- SO-8
- 95/tube Tape & Reel
- 500 pcs. Tape & Reel
Order Codes
- LCDA24.T
- LCDA24.TBT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
LCDA24
Part Description
24V, 300W, LOW CAPACITANCE TVS DIODE ARRAY FOR HIGH-SPEED DATA INTERFACES
