概要
RClamp®03392P is a high performance TVS array designed to protect two differential lines from over voltage events caused by ESD, lightning, cable discharge events (CDE), and electrical fast transients (EFT). RClamp03392P features high surge current capability and may be used to protect Ethernet interfaces in MagJacks, communications equipment, security cameras, and industrial equipment.
Packaging

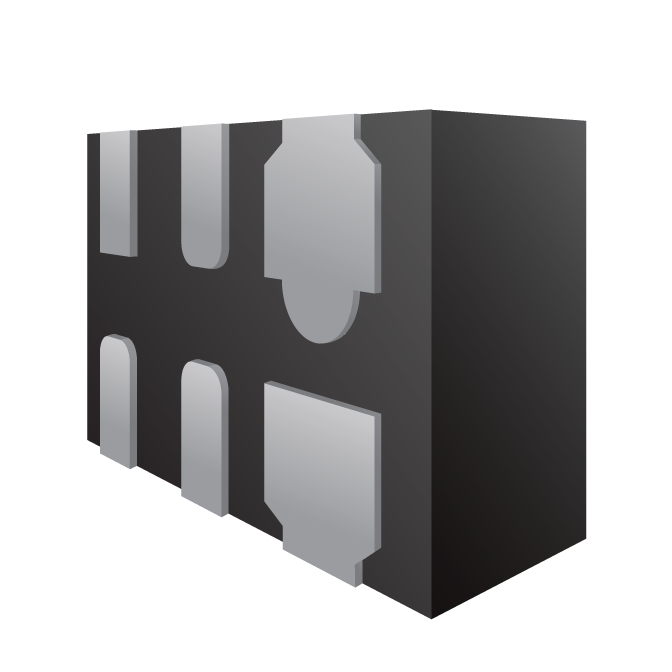

- DFN 1.6 x 1.0 x 0.55mm 6-Lead
Order Codes
- RClamp03392P.C: Pb-free, Halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
PB Free/ROHS
Learn More →Features
- Transient Protection to:
- IEC 61000-4-2 (ESD): 20kV (air), 8kV (contact)
- IEC 61000-4-4 (EFT): 4kV (5/50ns) - IEC 61000-4-5 (lightning): 6A (8/20μs)
- Very small PCB area
- Protects two high-speed data lines
- Working voltage: 3.3V
- Low capacitance: 0.25pF maximum
- Dynamic resistance: 0.28Ω
- Solid-state silicon-avalanche technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP03392P Datasheet | 2022-11-19 | | |
アプリケーション
- 1G/2.5G/5G/10G Ethernet
- Integrated magnetics/RJ-45 connectors
- Central office equipment
- Industrial equipment
- IP camera
