Antenna and RF interfaces are common in a wide host of electronics equipment. These antenna interfaces can be highly susceptible to ESD and overvoltage transient threats. Semtech offers low-capacitance TVS devices that will both safely arrest dangerous transient spikes while also presenting minimal capacitance to not compromise the RF signal integrity.

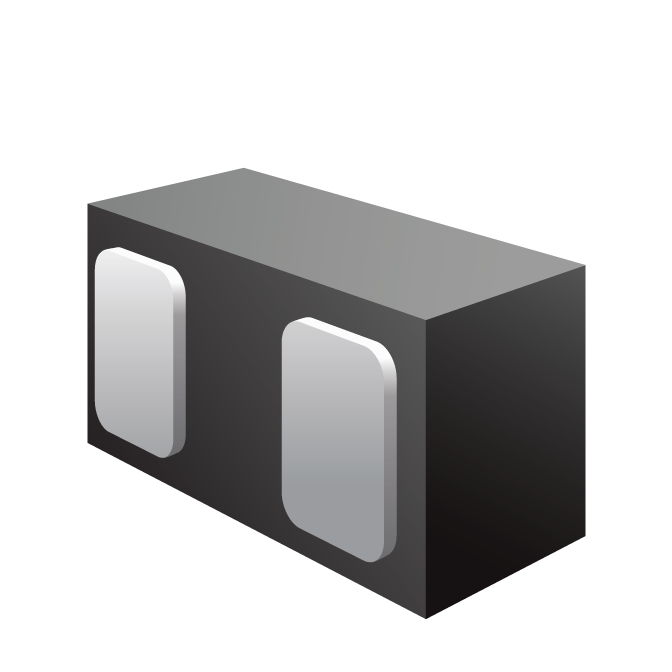

Ultra Small RClamp® 1-Line, 18V ESD Protection
Ultra-Small RailClamp® 1-Line, 24V ESD Protection

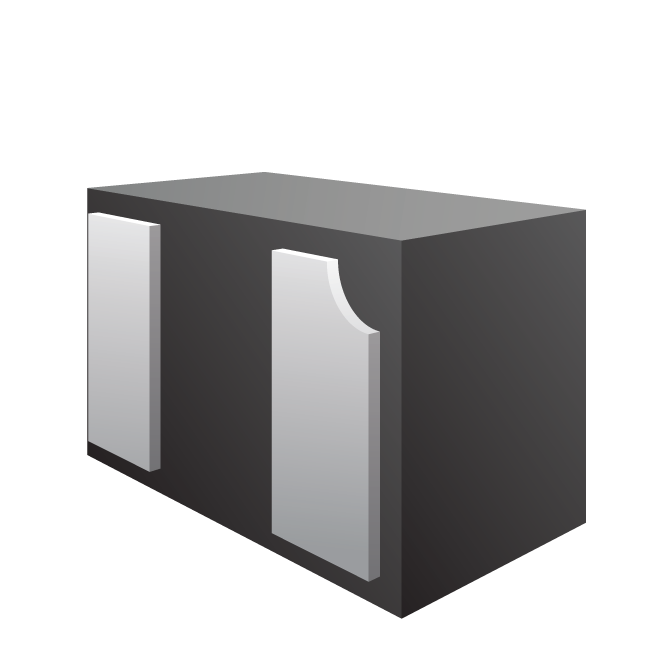

Ultra-Low Capacitance 1-Line ESD protection
