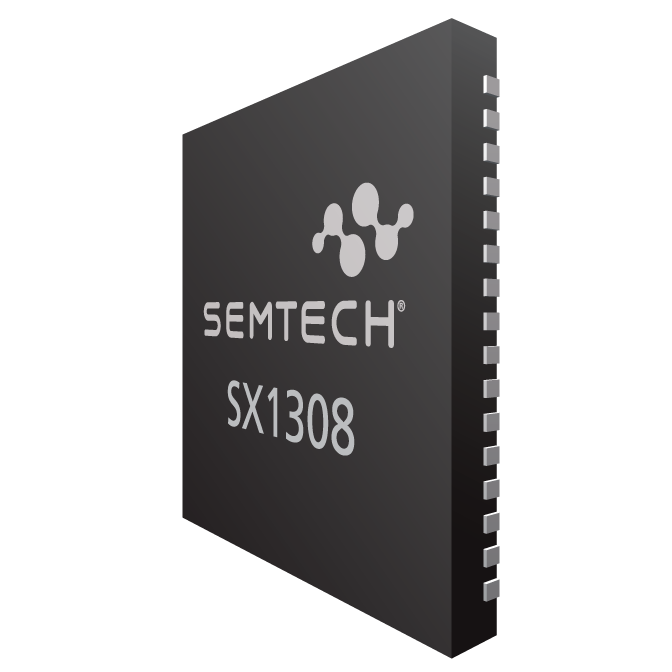

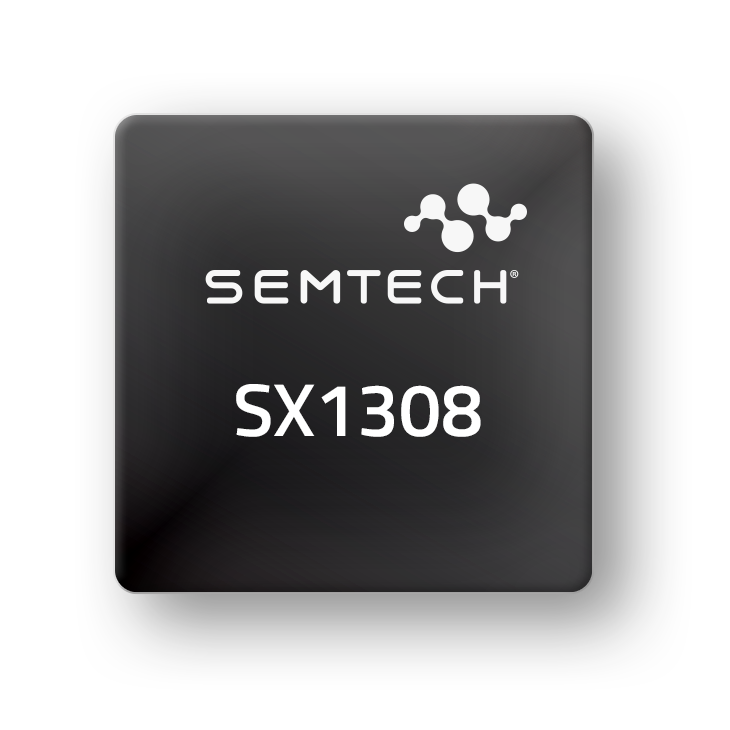

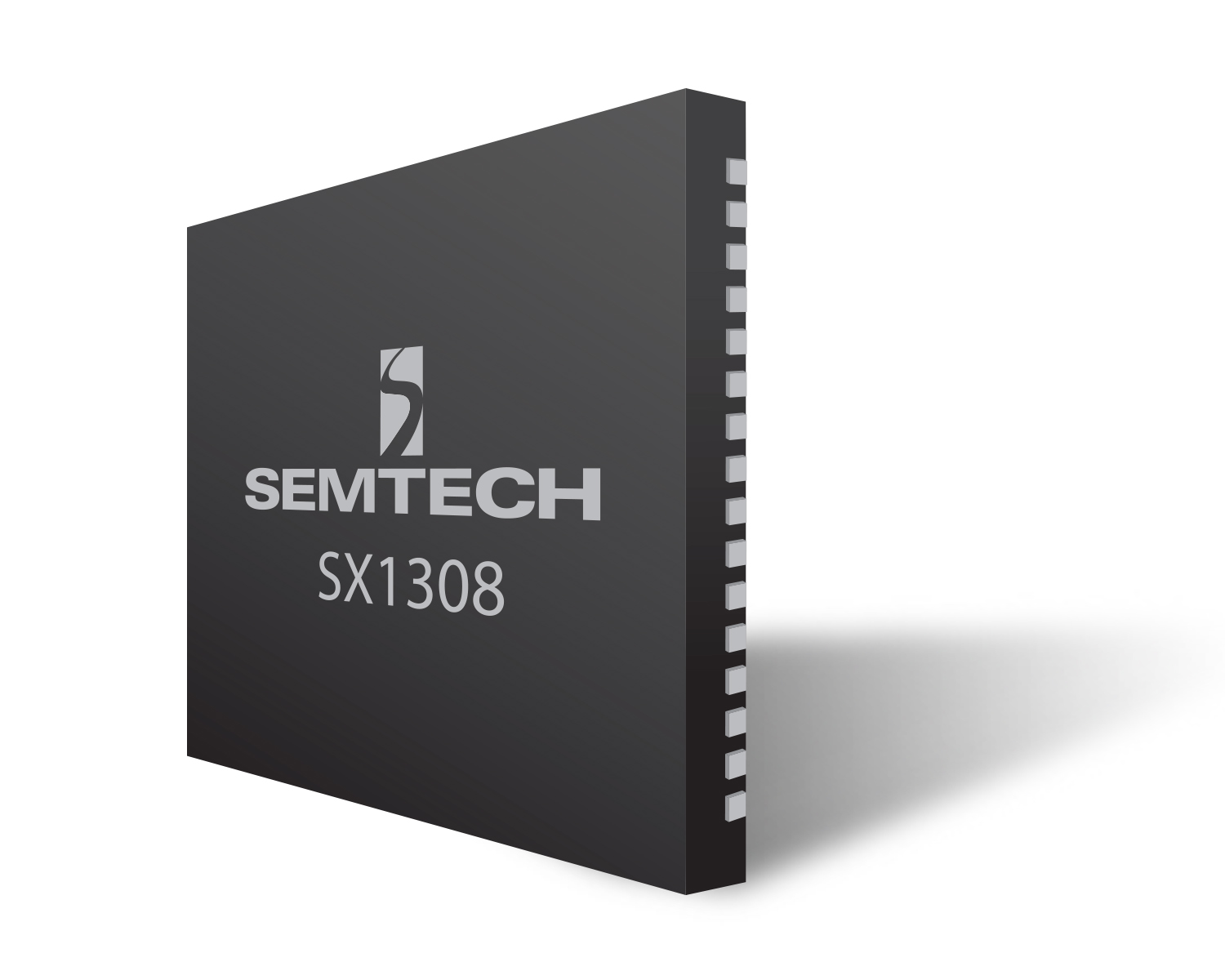

SX1308
The SX1308 digital baseband chip is a massive digital signal processing engine specifically designed to offer breakthrough gateway capabilities in the ISM bands worldwide. It integrates the LoRa® concentrator IP.
Features
- Up to -139dBm sensitivity with SX1257 or SX1255 Tx/Rx front-end
- 70dB CW interferer rejection at 1MHz offset
- Able to operate with negative SNR
- CCR up to 9dB
- Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
- Dual digital Tx & Rx radio front-end interfaces
- 10 programmable parallel demodulation paths
- Dynamic data-rate adaptation (ADR)
- True antenna diversity or simultaneous dual-band operation
- Smart Metering
- Security Sensors Network
- Agricultural Monitoring
- Internet of Things (IoT)
アプリケーション
Packaging
- Tape & Reel - 3,000 parts per reel
Order Codes
- SX1308IMLTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1308
Part Description
ISM DIGITAL SIGNAL PROCESSING DIGITAL BASEBAND CHIP
# of leads
64
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
