SX1308P915GW
This product has reached its End of Life. Please use SX1302CSSXXXGW1 for new designs.

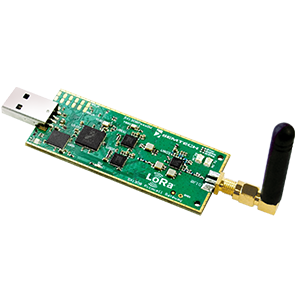

This PicoCell Gateway features LoRa® SX1308 and is configured for the 915MHz frequency band.
Features
- Based on SX1308
- PCB Layers: 4
- 32MHz Ref Clock: TCXO
- Frequency Band: 915MHz
- Tx Out Power: 22dBm
- PCB Version Number: E381V02C
Order Codes
- SX1308P915GW
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
Part # | Country | Qty | Buy | Distributor |
---|
関連情報
To see more videos Videos
The LoRaWAN-based gateway is the physical layer (PHY) interface for the LoRaWAN network server (LNS). On the one hand, it listens to certain parts of the radio spectrum and decodes LoRa®-modulated signals originating from LoRa-based sensors. On the other hand, the gateway transmits messages from the network down to a sensor as LoRa-modulated signals.
The exact parameters which govern the reception and transmission of these signals is specified in the LoRaWAN Regional Parameters. The parameters are regionally differentiated because there are different regulatory requirements in different regions of the world.
