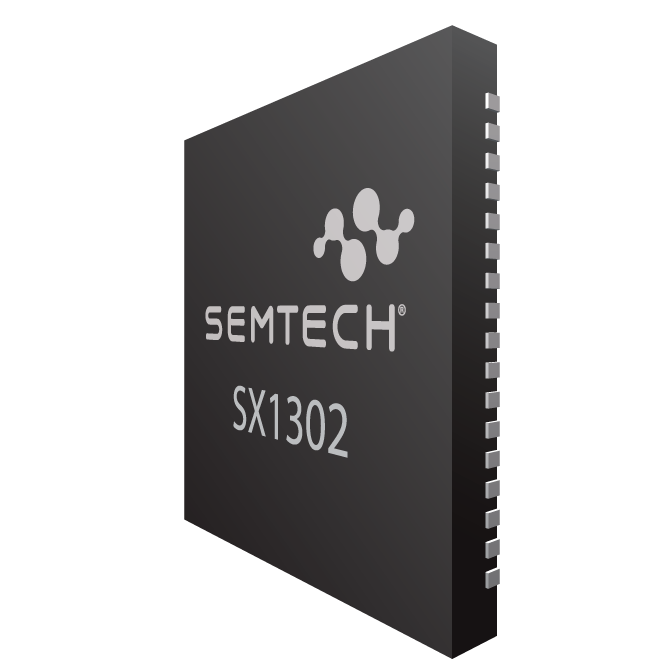

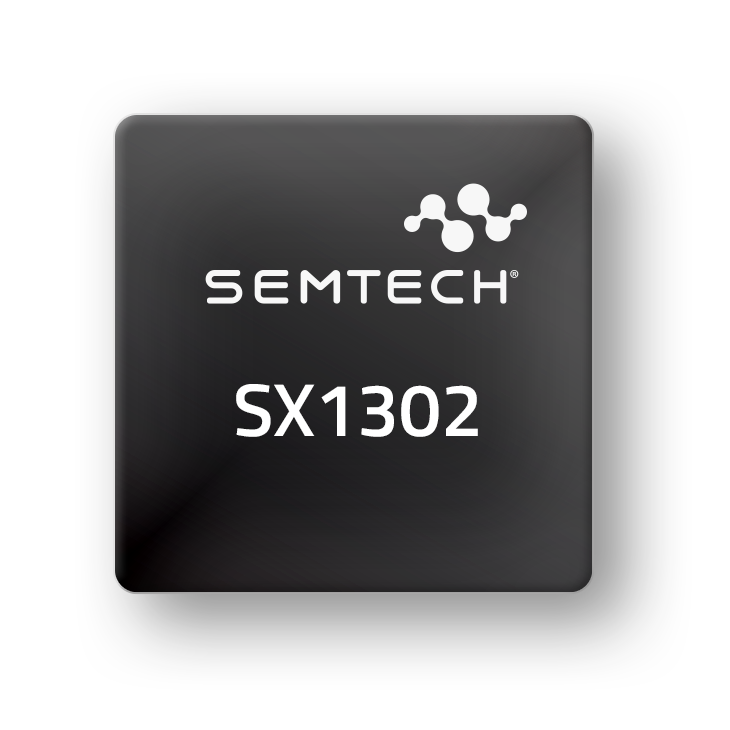

SX1302
The SX1302 is a new generation of baseband LoRa® chip for gateways. It excels in reducing current consumption, simplifies the thermal design of gateways, and reduces the bill Of materials costs, yet it is capable of handling a higher amount of traffic than preceding devices.
Features
- Up to -141dBm sensitivity with SX1250 Tx/Rx front-end (see reference design)
- 125kHz LoRa reception with:
- 8 x 8 channels LoRa® packet detectors
- 8 x SF5-SF12 LoRa® demodulators
- 8 x SF5-SF10 LoRa® demodulators
- 125 /250 / 500kHz LoRa® demodulator
- (G)FSK demodulator
- Direct interface to Semtech transceivers SX1250, SX1255, SX1257 and SX1258
- Single 32MHz clock
- Smart Metering
- Security Sensors Network
- Agriculture Monitoring
- Internet of Things (IoT)
アプリケーション
Packaging
- QFN68 Package
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1302
Part Description
LORA GATEWAY BASEBAND TRANSCEIVER
# of leads
68
Package Type
QFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
