SX1302CSSXXXGW1

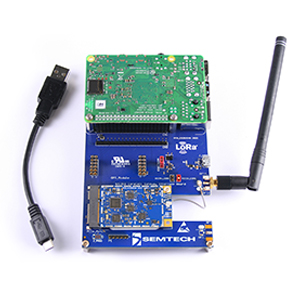

The LoRa® Corecell gateway Listen Before Talk and Spectral Scan reference design is a complete indoor and outdoor gateway turnkey solution reference design provided for Europe, U.S., Japan, and China ISM bands. The reference design is based on SX1302 and SX1250.
Features
- 10x power reduction compared to legacy products
- Maximum TX output power (CN490) = +17dBm
- Maximum TX output power (EU868/US915) = +27dBm
- Maximum TX output power (AS923) = +10dBm
- Receive 8 LoRa channels multi-data rates (SF5 ~ SF12 / 125 simultaneously kHz) + 2 mono-data rate (LoRa 250/500kHz and FSK 50kbps)
- Typical sensitivity level (CN490) :
- -141dBm at SF12 BW 125kHz
- -126dBm at SF7 BW 125kHz
- -109dBm at FSK 50kbps
- Typical sensitivity level (EU868/US915) :
- -140dBm at SF12 BW 125kHz
- -125dBm at SF7 BW 125kHz
- -110dBm at FSK 50kbps
- Typical sensitivity level (AS923) :
- -141dBm at SF12 BW 125kHz
- -126dBm at SF7 BW 125kHz
- -110dBm at FSK 50kbps
- Home automation
- Building automation
- Factory automation
アプリケーション
Order Codes
- SX1302CSS490GW1 for China ISM band reference design kit
- SX1302CSS868GW1 for Europe ISM band reference design kit
- SX1302CSS915GW1 for US ISM band reference design kit
- SX1302CSS923GW1 for Japan ISM band reference design kit
