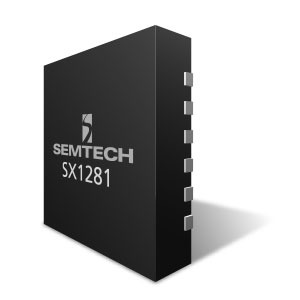

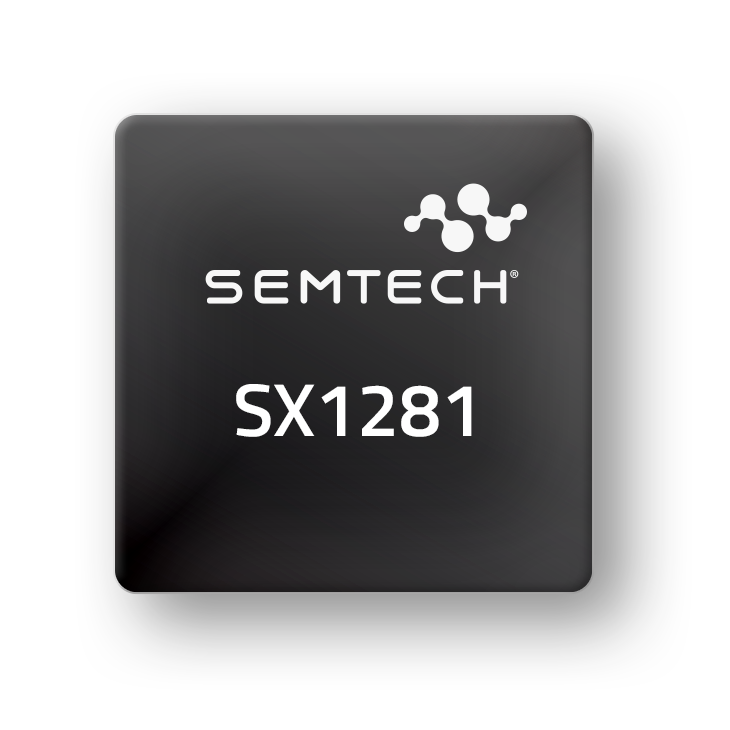

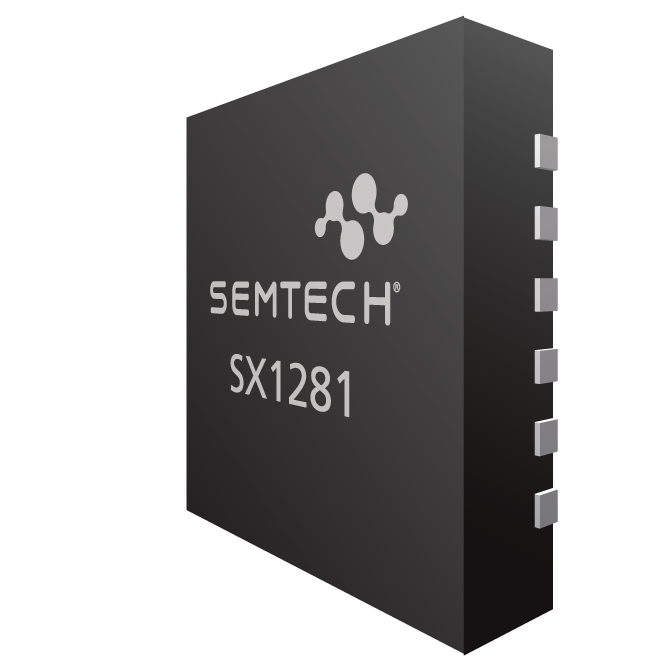

SX1281

The SX1281 transceiver provides ultra long range communication in the 2.4GHz band with the linearity to withstand heavy interference. This makes them the ideal solution for robust and reliable wireless solutions.

Pb(Lead)-Free/RoHS-Green Info

すべて表示

Base Part Number (1)
SX1281
Lead Free Part Number (1A), (13)
SX1281IMLTRT
Part Description
LONG RANGE, LOW POWER, 2.4 GHZ TRANSCEIVER WITH RANGING CAPABILITY
# of leads
24
Package Type
QFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
RoHS / RoHS 2 2011/65/EC (4) (5)
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Green Reportable Substance (9) Antimony (Sb)/ Berylliuum (Be)
Phosphorus (P) & (Red P)
Compliant (ND4) or below threshold PPM (7)
ND4
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Download Report

Additional Resources

Explore software downloads, documentation, recommended links, and more resources for this product.

DLP Design: DLP-RFS1280 2.4GHz LoRa Transceiver Module

Source Code DevKit in C++

Source Code PingPong in C++

SX1280RF1ZHP MBED Webpage
