LR1120MB1IPDT1DKS
The LR1120MB1IPDT1DKS development kit features Semtech's LoRa Edge™ LR1120 and is configured for the LoRa 868MHz and 915MHz Industrial, Scientific and Medical (ISM) band for Europe and North America, as well as for the global 2.4GHz ISM band. This LR1120 reference design includes Integrated Passive Devices (IPD), developed in partnership with Johanson Technology.
Features
- PCB layers: 4
- 32MHz ref clock: TCXO
- Region: Europe and North America
- Frequency bands: 868MHz , 915MHz and 2.4GHz
- Tx out power: 14dBm or 22dBm (subGHz) and 11.5dBm (2.4GHz)
- Each development kit contains:

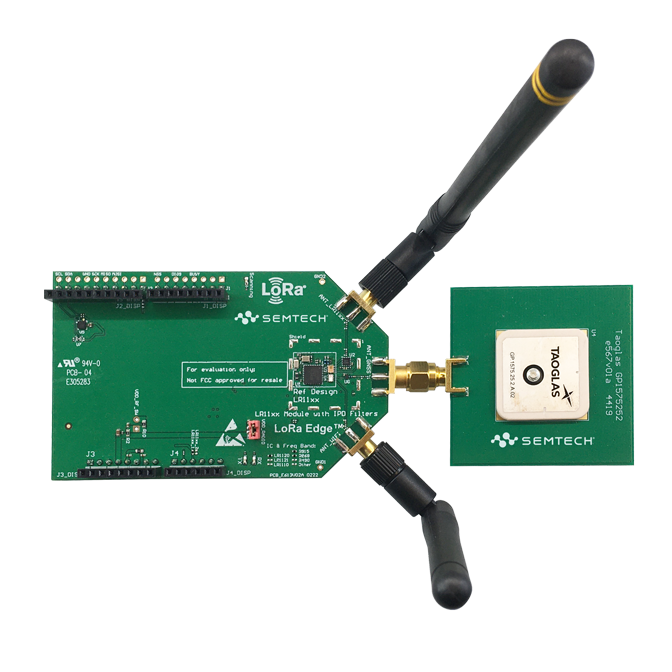

- LR1120MB1IPDDIS: single RF module with 1x IPD for 868/915MHz and 1x IPD for GNSS and 2.4GHz Wi-Fi band - PCB Nr.: E613V02A
- 1x LoRa antenna for 868MHz (Europe – grey rings) – Linx Tech P/N: ANT-868-CW-HWR-SMA
- 1x LoRa antenna for 915MHz (U.S. – yellow rings) – Linx Tech P/N: ANT-916-CW-HWR-SMA
- 1x GNSS passive patch antenna or equivalent – Taoglas P/N: GP.1575.25.2.A.02
- 1x LoRa/Wi-Fi 2.4GHz antenna – Pulse Electonics P/N: W1010
- Multi regional asset location, recovery and traceability
- Multi regional inventory management
- Multi regional asset loss and theft prevention
アプリケーション
Additional Resources
Explore software downloads, documentation, recommended links, and more resources for this product.
Demonstration
LR-FHSS Demonstration & Drivers
This package contains drivers and demos for Long-Range Frequency Hopping Spread Spectrum (LR-FHSS) transmission.
Evaluation Kit
LR11x0 EVK Demonstration Application
Demonstrator application for LR11x0 transceiver and LR1110 LoRa Basics Modem-E.
L2 Protocol Library
LoRa Basics Modem LoRaWAN L2 Library
LoRa Basics™ Modem is an easy-to-use software library that simplifies the development of LoRaWAN® end nodes.
Silicon Driver
LR11xx Transceiver Driver
This package proposes an implementation in C of the driver for LR11XX radio component.
Silicon Microcode
LR1120 Transceiver Firmware
Software Development Kit
LR11xx Transceiver SDK
The LR11xx SDK contains several simple examples for LR11xx transceivers.
Tool
LR11xx Firmware Updater Tool
Reference implementation of the mechanism to update a the LR11x0 firmware.
