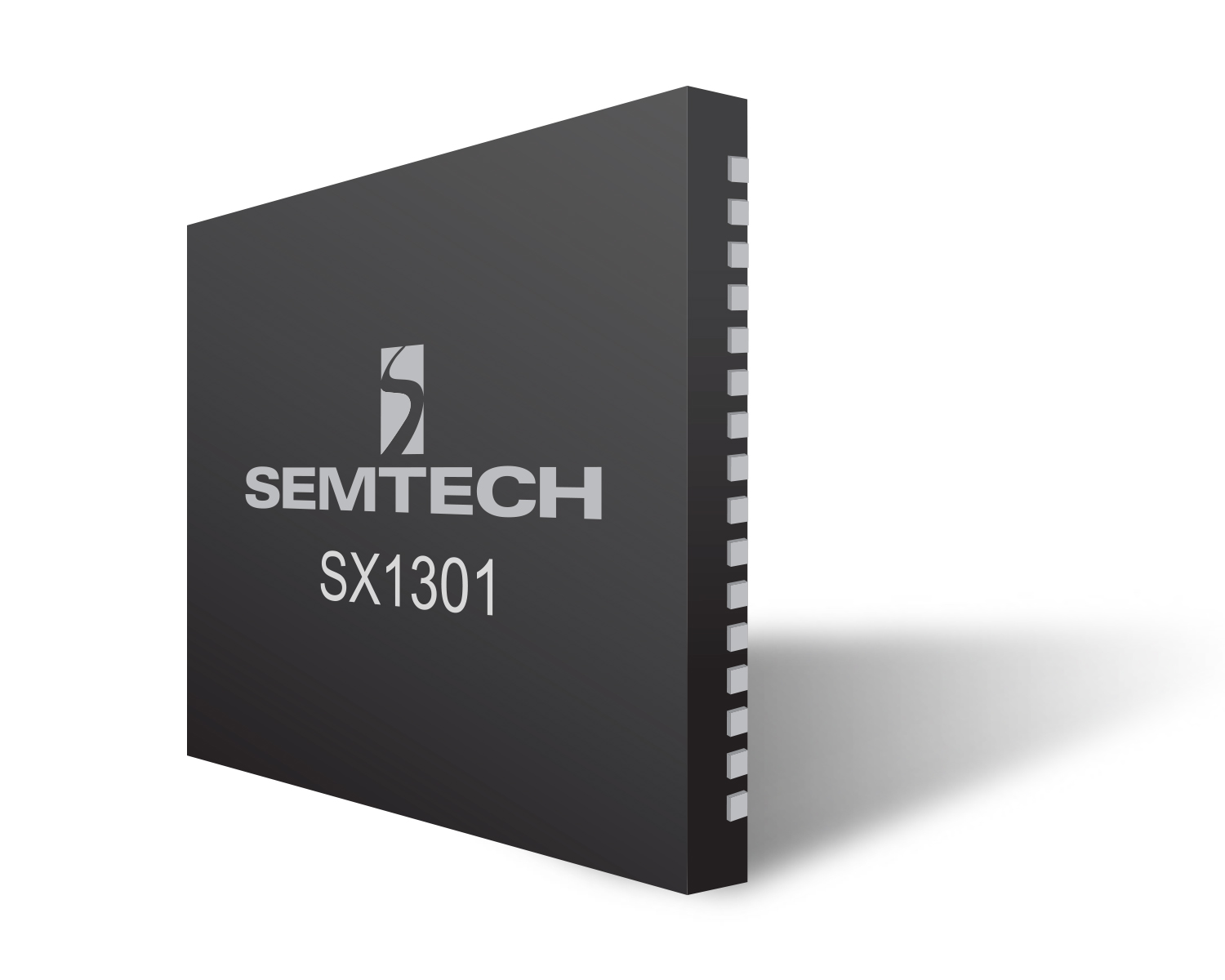

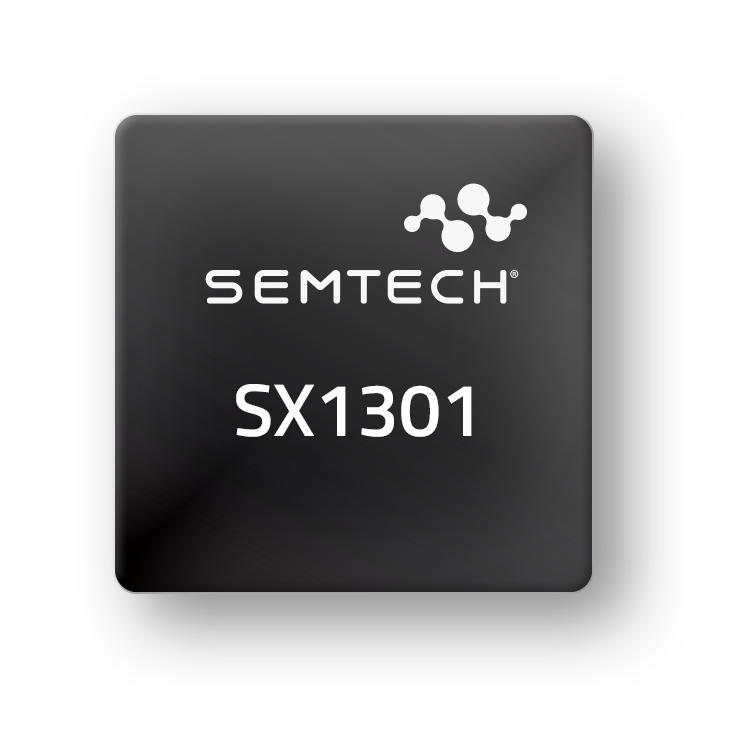

SX1301
The SX1301 digital baseband chip is a massive digital signal processing engine specifically designed to offer breakthrough gateway capabilities in the ISM bands worldwide. It integrates the LoRa concentrator IP.
Features
- Up to -142.5dBm sensitivity with SX1257 Tx/Rx front-end
- 70 dB CW interferer rejection at 1 MHz offset
- Able to operate with negative SNR, CCR up to 9dB
- Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
- Dual digital TX&RX radio front-end interfaces
- 10 programmable parallel demodulation paths
- Dynamic data-rate (DDR) adaptation
- True antenna diversity or simultaneous dual-band operation
- Smart Metering
- Security Sensors Network
- Agricultural Monitoring
- Internet of Things (IoT)
アプリケーション
Order Codes
- SX1301IMLTRC
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Related Parts
SX1301IMLTRT
