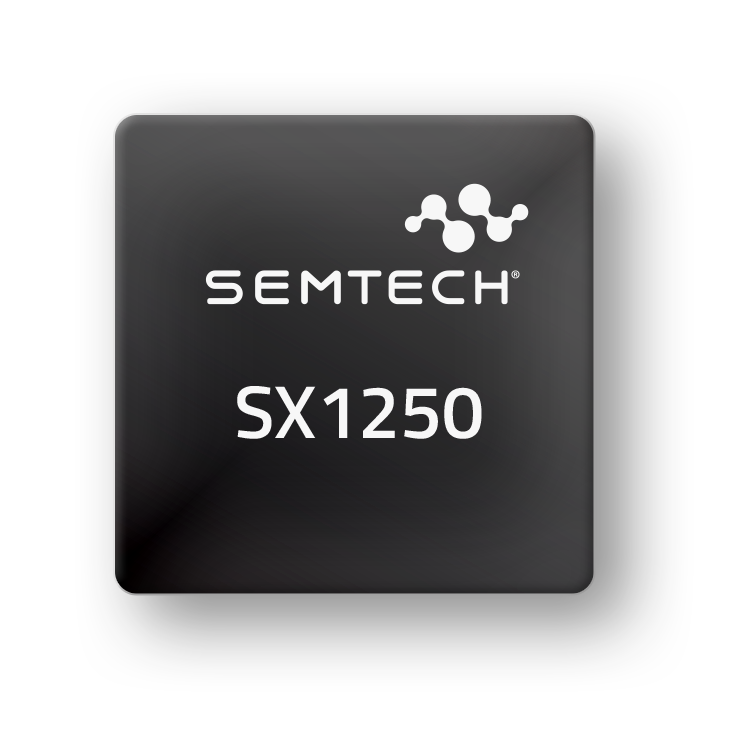

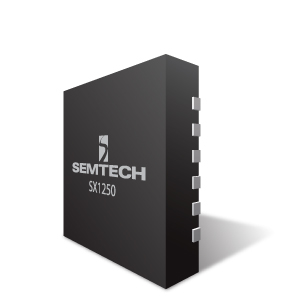

SX1250
The SX1250 is a sub-GHz RF front end device designed to work along with Semtech’s SX1302 baseband engine, to design a high-performing gateway leveraging LoRa® or LoRaWAN®. It covers any frequency band below 1GHz, making it the perfect candidate to support any license-free band used in today’s IoT use cases.
Features
- Half Duplex operation
- Capable of low power operation
- 150 – 960MHz ISM frequency bands
- Can handle constant envelope modulations schemes such as LoRa® or FSK
- Offers a built-in differential Low Noise Amplifier (LNA)
- Is controlled via a serial SPI interface and a set of general purpose input/output (DIOs)
Packaging
- LoRa® and LoRaWAN gateways
Order Codes
- SX1250IMLTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1250
Part Description
MULTI-BAND SUB-GHz RF FRONT END
# of leads
24
Package Type
QFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
