LoRa Basics Modem/Modem-E is an easy-to-use software library that simplifies the development of LoRaWAN® end-nodes in the ISM Sub-GHz and 2.4GHz bands for worldwide interoperability. It provides developers with an event-driven interface at a high level of abstraction. The Software stack is compatible with TS001-LoRaWAN L2 1.0.4 and Regional Parameters RP2-1.0.3 specifications.
The LoRa Basics Modem library targets peripheral MCUs and the LoRa Basics Modem-E offers an embedded stack option hosted in Semtech’s LR1121 3rd generation LoRa® IC.
LoRa Basics Modem
LoRa Basics Modem-E
主な特徴
LoRa Basics Modem compatible with Semtech’s 2nd and 3rd generation LoRa ICs: SX1261, SX1262, SX1268, LR1110, LR1120 & LR1121.
LoRa Basics Modem-E compatible with Semtech's 3rd generation LoRa IC LR1121.
- LoRaWAN 1.0.4 specification
- All LoRaWAN regional parameters and WW 2.4GHz
- LR-FHSS additional data rate for EU/US/AU
- Class A/B/C
- Multi-cast class B/C
- Relay end-device
- Relay concentrator (LoRa Basics Modem only)
- Carrier Sensing Multiple Access (CSMA)
- Pre-configured ADR profiles

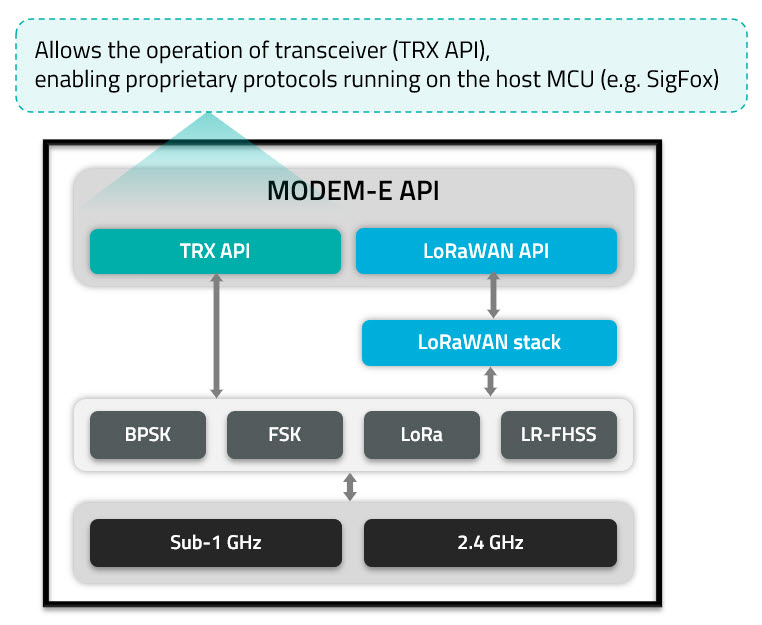

- Transceiver API supporting off-chip stack (LoRa Basics Modem-E only)
- LoRaWAN Firmware-Update-Over-The-Air (FUOTA) packages
- Application Layer Clock Synchronization (ALCSync)
- Remote Multicast Setup Fragmented Data Block Transport Firmware Management Protocol (FMP)
- Multi-Package Access (MPA)
- LoRaWAN certification by similarity
- Supports LoRa Edge™ location-aware features
Datasheets & Documentation
Software (Firmware) Releases
- LoRa Basics Modem: Software
- LoRa Basics Modem: Zephyr Implementation
- LoRa Basics Modem: Multi-Stack with Amazon Sidewalk
- Tool for updating LR11xx devices
- Precompiled Binaries for updating LR1121 to Modem-E V2
- Firmware Images for LR1121 Modem-E
- LoRa Basics Modem-E: Drivers
- LoRa Basics Modem-E: Example Applications
- LoRa Basics Modem-E: Command Line Tool
