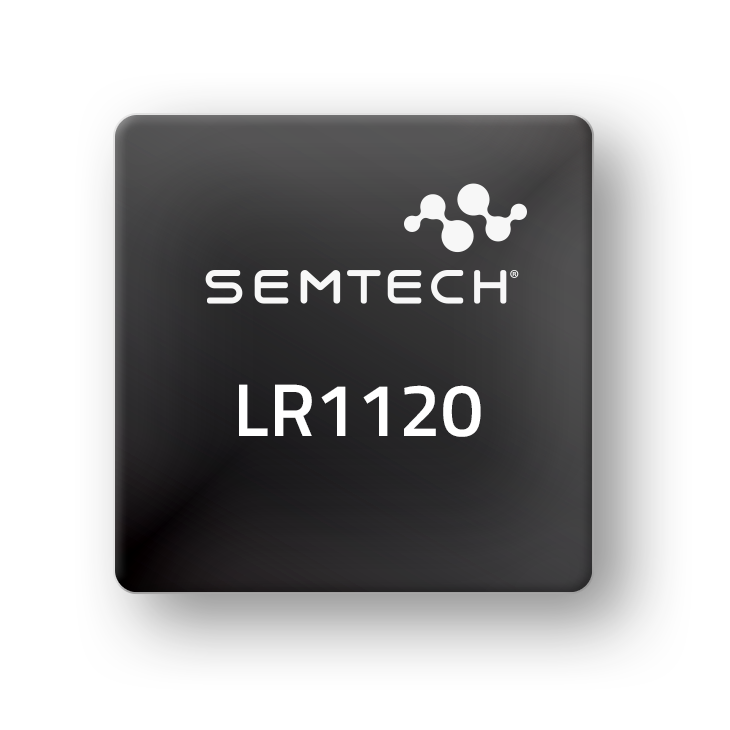

LR1120
The LR1120 is an ultra-low power device targeting global geolocation applications. It provides multi band LoRa® and Long Range - Frequency Hopping Spread Spectrum (LR-FHSS) communication over sub-GHz and 2.4GHz Industrial, Scientific and Medical (ISM) bands as well as licensed S-Band for satellites. It integrates a Cloud-native multi-constellation global navigation satellite system (GNSS) scanner and a passive Wi-Fi MAC address scanner, both leveraging Semtech’s LoRa Cloud™ services.
The LR1120 is designed to comply with the physical layer requirements of the LoRaWAN® standard specification released by the LoRa Alliance®, while remaining configurable to meet different application requirements and proprietary protocols.
Features
Low-power high-sensitivity LoRa/(G)FSK half-duplex RF transceiver
- Worldwide ISM frequency bands support in the range 150 - 960MHz (Sub-GHz) and 2.4GHz, as well as 1.9-2.1GHz (S-Band)
- Low Noise Figure RX front-end for enhanced LoRa/(G) FSK sensitivity
- High power PA path +22dBm in the Sub-GHz band
- PA path up to +11.5dBm in the 2.4GHz band
- LR-FHSS modulator
- Integrated PA regulator supply selector to simplify dual power +15/+22dBm with one board implementation (Sub-GHz)
- Supports worldwide multi-region BOM, the circuit adapts to matching network to satisfy regulatory limits
- Fully compatible with SX1261/2/8 devices and the LoRaWAN standard, defined by the LoRa Alliance
Multi-Purpose Radio Front-End Targeting Geolocation Purposes
- GNSS (GPS/ BeiDou) low-power scanning
- 802.11b/g/n Wi-Fi ultra-low-power passive scanning
Cryptographic Engine
- Supports AES-128 encryption/decryption based algorithms
- Handles device parameters such as DevEUI and JoinEUI, as defined by the LoRa Alliance
- Protects confidential information such as encryption keys against unauthorized access
- LoRaWAN規格で定義されたNwkKeyおよびAppKeyを格納
-
Multi regional asset location, recovery and traceability
-
Multi regional inventory management
-
Multi regional asset loss and theft prevention
-
Intercontinental logistics
アプリケーション
Packaging
- QFN32 5x5 mm
Order Codes
- LR1120IMLRT
Datasheets & Documentation
Application Notes
- AN1200.57 LR11xx Program Memory Update
- AN1200.58 Application note for Long-Range FHSS Demo
- AN1200.59 Application note for selecting the optimal clock
- AN1200.62: Best Practices for FCC Pre-Compliance testing of LoRaWAN Modules
- AN1200.64 LR-FHSS System Performance
- AN1200.66: PCB Design Guidelines
- AN1200.69 GNSS Antenna Application Note
- AN1200.70 LoRa Edge Advanced GNSS Scan Performance Overview
- AN1200.73 SX126x/LR11xx SigFox Modulation
- AN1200.74 LoRa Edge Clock Requirements
- AN1200.76 Application Note for LR11xx IPD Reference Design
- AN1200.80 - LoRa® Modem Doppler Immunity AppNote
- AN1200.81 Doppler Immunity of the LR-FHSS Modem
- AN1200.97 LR11x0 Ranging Demo Application Note
Software Releases (Firmware)
- Driver for LR11xx chips
- LR1120 Transceiver Microcode
- LR11xx firmware update procedure
- SWAP001 LoRa Edge Config Android App
- SWAP002 The LoRa Edge™ Config app for iOS
- SWDM021 - Round-Trip-Time-of-Flight (ranging) Demonstrator for LoRa Edge LR11x0
- SWDR007 - LR11xx Sidewalk Driver for EFR32MG24
- SWL2001 - LoRa Basics Modem Library
- SWSD003 - Code examples for SX126x and LR11XX
- SWSD006 - LR11xx Multi-Stack SDK for nRF52840
