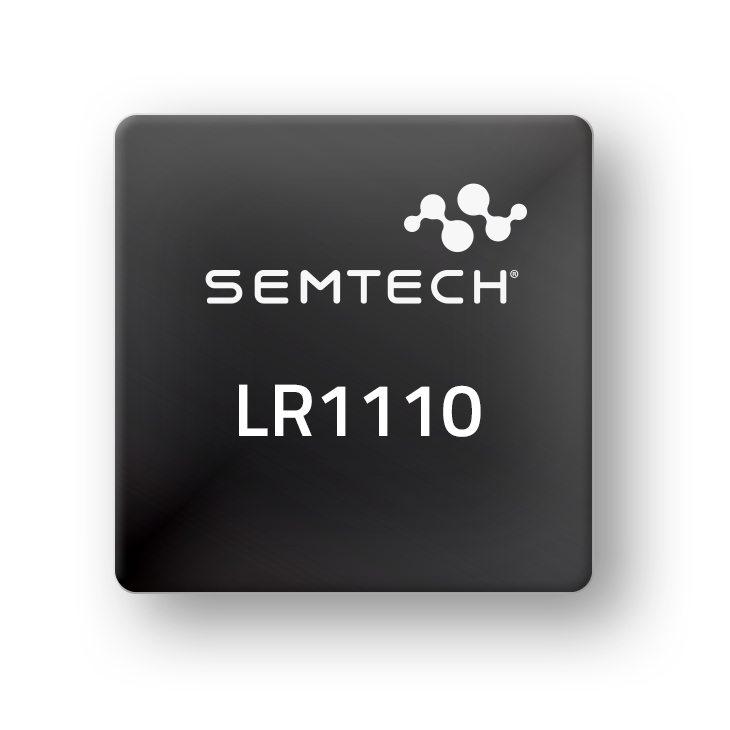

LR1110
Ultra-low power platform that integrates a LoRa® transceiver, long range FHSS modulator, multi-constellation scanner, and passive Wi-Fi AP MAC address scanner targeting asset management applications.
The LR1110 solution utilizes Semtech’s LoRa Cloud™ Geolocation capabilities, to significantly reduce power consumption by determining asset location in a Cloud-based solver.
Features
Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver
- Worldwide ISM frequency bands support in the range 150 - 960MHz
- Low Noise Figure RX front-end for enhanced LoRa/ (G) FSK sensitivity
- High power PA path +22dBm
- High efficiency PA path +15dBm
- Long Range FHSS (LR-FHSS) modulator
- Integrated PA regulator supply selector to simplify dual power +15/+22dBm with one board implementation
- Able to support world-wide multi-region BOM, the circuit adapts to matching network to satisfy regulatory limits
- Fully compatible with SX1261/2/8 devices and the LoRaWAN® standard, defined by the LoRa Alliance®
Multi-Purpose Radio Front-End Targeting Geolocation Purposes
- GNSS (GPS/ BeiDou) low-power scanning
- 802.11b/g/n Wi-Fi ultra-low-power passive scanning
- 150 - 2700MHz continuous frequency synthesizer range
- High bandwidth RX ADC (up to 24MHz DSB)
- Digital baseband processing
Cryptographic Engine
- Hardware support for AES-128 encryption/decryption based algorithms
- Handling device parameters such as DevEUI and JoinEUI, as defined by the LoRa Alliance
- Protects confidential information such as encryption keys against unauthorized access
- Stores NwkKey, AppKey, as defined in the LoRaWAN standard
-
Asset location
-
Asset recovery
-
Asset traceability
-
Inventory management
-
Asset loss and theft prevention
アプリケーション
Packaging
- QFN32 5x5 mm
Order Codes
- LR1110IMLTRT
Pb(Lead)-Free/RoHS-Green Info
Related Parts
LR1110IMLTRT
Datasheets & Documentation
Application Notes
- AN1200.56 LR1110 evaluation kit
- AN1200.57 LR1110 Program Memory Update
- AN1200.58 LR-FHSS Demo Code Application Note
- AN1200.59 Application note for selecting the optimal clock
- AN1200.62: Best Practices for FCC Pre-Compliance testing of LoRaWAN Modules
- AN1200.64 LR-FHSS System Performance
- AN1200.66: PCB Design Guidelines
- AN1200.69 GNSS Antenna Application Note
- AN1200.70 LoRa Edge Advanced GNSS Scan Performance Overview
- AN1200.73 SX126x/LR11xx SigFox Modulation
- AN1200.74 LoRa Edge Clock Requirements
- AN1200.76 Application Note for LR11xx IPD Reference Design
- AN1200.78 LR1110 Round-Trip-Time-of-flight Application Note
- AN1200.80 - LoRa® Modem Doppler Immunity AppNote
- AN1200.81 Doppler Immunity of the LR-FHSS Modem
- AN1200.97 LR11x0 Ranging Demo Application Note
Software Releases (Firmware)
- Driver for LR11xx chips
- LoRa Edge Tracker reference design demonstration application
- LR1110 Transceiver Microcode
- LR11xx firmware update procedure
- SWAP001 LoRa Edge Config Android App
- SWAP002 The LoRa Edge™ Config app for iOS
- SWDM021 - Round-Trip-Time-of-Flight (ranging) Demonstrator for LoRa Edge LR11x0
- SWDR004 LR1110 Modem-E driver
- SWDR007 - LR11xx Sidewalk Driver for EFR32MG24
- SWL2001 - LoRa Basics Modem Library
- SWSD003 - Code examples for SX126x and LR11XX
- SWSD006 - LR11xx Multi-Stack SDK for nRF52840
