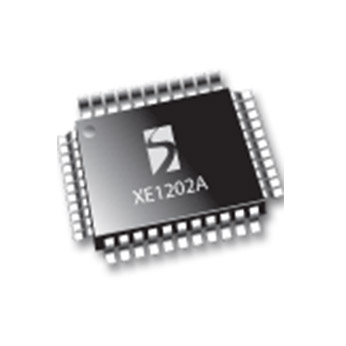

XE1202A
The XE1202A is a single chip transceiver aimed at the European 868-870MHz and the US 902-928MHz ISM bands. The XE1202A includes 4 on-chip channel filters (10 kHz, 20 kHz, 40 kHz, 200 kHz) to allow for dynamically selectable narrow or wide band operation. The XE1202A also features a programmable frequency synthesizer (minimum resolution 500 Hz) ideally suited for frequency hopping applications.
Features
- Transmit power: up to +15 dBm
- High reception sensitivity: down to -116 dBm
- Low power consumption
- Low voltage operation : down to 2.4 V
- Frequency synthesizer with integrated PLL
- Data rate up to 76.8 kbit/s
- Frequency deviation from 5 kHz to 100 kHz
- On-chip bit synchronizer
- Few external components - no SAW filter required
- Home automation
- Process & Building Control
- Security systems
- Wireless data link
- Home appliances
- Wireless voice link
アプリケーション
Packaging
- LQFP44
Order Codes
- XE1202AI027TRLF: LQFP-44, Lead-free RoHS Compliant, 1500 pieces on Tape & Reel
