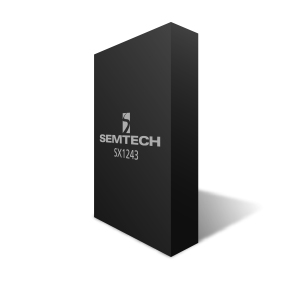

SX1243
The SX1243 is an ultra-low-cost, fully integrated FSK or OOK transmitter suitable for operation between 310 and 450 MHz, 860 and 870MHz, as well as 902 and 928MHz.
Features
- +10dBm or 0dBm Configurable output power
- Bit rates up to 100kbps
- OOK and FSK modulation.
- 1.8 to 3.7V supply range.
- Low BOM Fully Integrated Tx
- Fractional-N PLL with 1.5kHz typical step
- Frequency agility for FHSS modulation
- AEC-Q100 Qualified Part
- FCC CFR Part 15.247 Digital Modulation Techniques
- Garage Door Openers
- Low-Cost Consumer Electronic Applications
- Remote Keyless Entry (RKE)
- Remote Control / Security Systems
アプリケーション
Packaging
- DFN-UT8
Order Codes
- SX1243IULTRT - Pb-Free, Halogen Free, RoHS/WEEE compliant product
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1243
Part Description
LOW COST LOW CURRENT INTEGRATED TRANSMITTER 310 TO 928MHZ FREQUENCY AGILE
# of leads
8
Package Type
DFN-UT8
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
