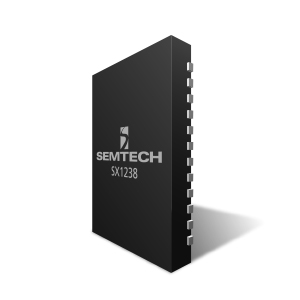

SX1238
The SX1238 is a fully integrated ISM band transceiver optimized for use in the (FCC Part 15) 915 MHz band in the US and 868 MHz band in Europe with a minimum of external components.
Features
- +27 dBm - 500 mW RF output power
- +27 dBm high efficiency PA
- Programmable bit rate up to 300kbps
- High sensitivity: -124 dBm at 1.2 kbps
- 863 - 870 MHz and 902 - 928 MHz
- 80 dB blocking Immunity
- Low current, 100nA register retention
- Fully integrated synthesizer with a resolution of 61 Hz
- FSK, GFSK, MSK, GMSK and OOK modulations
- Built-in bit synchronizer performing clock recovery
- Sync word recognition
- Preamble detection
- 115 dB+ dynamic range RSSI
- Automatic RF sense with ultra-fast AFC
- Packet engine up to 64 bytes with CRC
- Built-in temperature sensor and low battery indicator
- Automated Meter Reading
- Wireless Sensor Networks
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
アプリケーション
Packaging
- MLPQ
Order Codes
- SX1238IMLTRT - Pb-free, Halogen free, RoHS/WEEE compliant product
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1238
Part Description
SX1238 - 902-960 MHZ HIGH OUTPUT POWER HIGH LINK BUDGET INTEGRATED UHF TRANSCEIVER
# of leads
40
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
3
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
