SX1230
The SX1230 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915MHz licence free ISM bands.

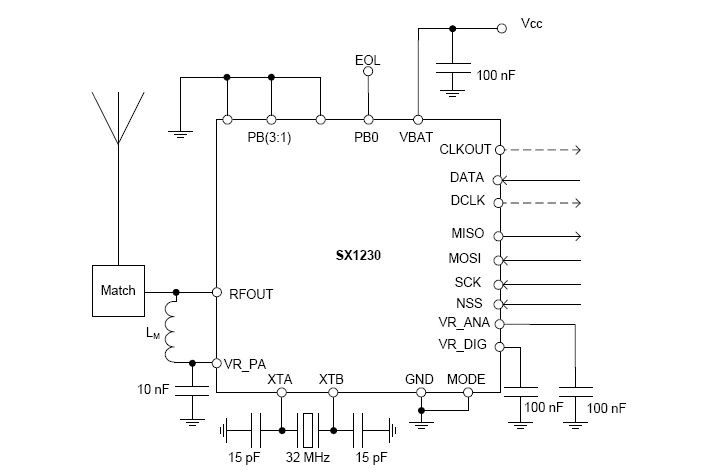

Features
- +17dBm to -18dBm Programmable output power.
- Bit rates up to 600kbits / sec.
- FSK, GFSK, MSK, GMSK and OOK modulation.
- Stand-alone mode: No need for a host MCU.
- Consistent RF performance over a 1.8 to 3.7V range.
- Low phase noise (-95dBc/Hz at 50kHz) with automated PLL calibration and fully integrated VCO and loop filter.
- On chip RC timer for timer / wake-up applications.
- Low battery detection.
- Remote Keyless Entry (RKE)
- Remote Control / Security Systems
- Voice and Data RF Communication Links
- Process and building / home control
- Active RFID
- AMR / AMI Platforms
アプリケーション
Order Codes
- SX1230I066TRT: LeadFree, WEEE and RoHS Compliant, 3000 pcs Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1230
Part Description
INTEGRATED TRANSMITTER IC NARROW/WIDEBAND 315 MHz, 434 MHz 868 MHz AND 915 MHz BAND TRANSMITTER
# of leads
24
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
2
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
