SX1212
The SX1212 is a low cost single-chip transceiver operating in the frequency ranges from 300MHz to 510MHz. The SX1212 is optimized for very low power consumption (3mA in receiver mode).
Features
- Low Rx power consumption: 3mA
- Low Tx power consumption: 25mA @ +10dBm
- Good reception sensitivity: down to -104dBm at 25kb/s in FSK, -110dBm at 2kb/s in OOK
- Programmable RF output power: up to +12.5dBm in 8 steps
- Packet handling feature with data whitening and automatic CRC generation
- RSSI (Received Signal Strength Indicator)
- Bit rates up to 150kb/s, NRZ coding
- On-chip frequency synthesizer
- FSK and OOK modulation
- Incoming sync word recognition
- Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery

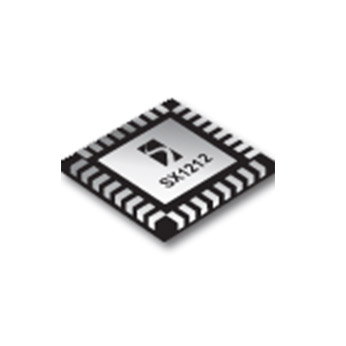

- 5 x 5mm TQFN package

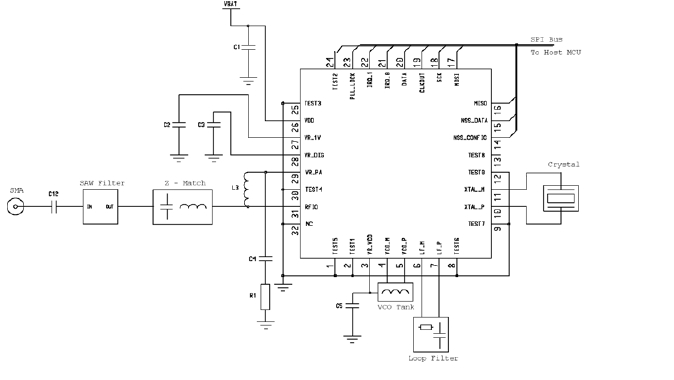

- Optimized Circuit Configuration for Low-cost applications
- Wireless alarm and security systems
- Wireless sensor networks
- Automated Meter Reading
- Home and building automation
- Industrial monitoring and control
- Remote Wireless Control
- Active RFID PHY
アプリケーション
Packaging
- TQFN32
Order Codes
- SX1212IWLTRT: Transceiver Ultra-Low Power Integrated 300-510MHz Transceiver
- SX1230-13RKEA433: Turnkey Remote Keyless Entry Reference Design Kit with SX1230 transmitter, SX1211 or SX1212 Transceiver, KEELOQ® code-hopping encryption software and Microchip’s PIC16F631 or PIC16F677 8-bit MCU
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX1212
Part Description
TRANSCEIVER ULTRA-LOW POWER INTEGRATED 300-510MHz TRANSCEIVER
# of leads
32
Package Type
MLPQ-W
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
3
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Datasheets & Documentation
Distributor/Catalog Supplier Inventory
