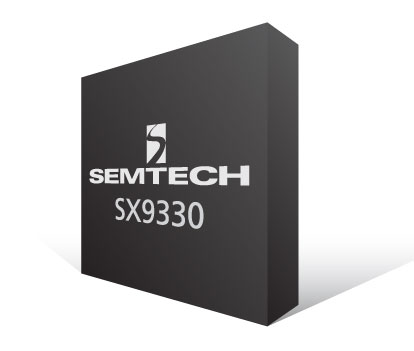

SX9330
SX9330 is part of the Semtech PerSe Connect product line which enhances the connectivity in a wide range of wireless devices. It offers 4-channels to support advanced radio frequency (RF) control for performance optimization and worldwide Specific Absorption Rate (SAR) regulation compliance. Its high sensing performance and high DC offset compensation capability make it the ideal choice for applications such as smartphones, tablets and laptops.
Features
- 4-channel sensor input specially designed for SAR applications
- 2.7-3.6V input supply voltage
- High resolution sensing
- Semtech patented smart engine
- Advanced temperature compensation
- Automatic calibration
- Ultra-low power consumption
- 400kHz I2C serial interface
- Operating temperature (-40 °C to +85 °C)
- Compact footprint
- Pb & halogen-free
- RoHS/WEEE-compliant
- Smartphones (5G sub-6/4G/Wi-Fi)
- Tablets (5G sub-6/4G/Wi-Fi)
- Laptops (5G sub-6/4G/Wi-Fi)
- Other wireless portable devices
アプリケーション
Packaging
- WLCSP
Order Codes
- SX9330ICSTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX9330
Part Description
SMART CAPACITIVE SENSOR FOR SAR AND TOUCH BUTTONS WITH LED DRIVER
# of leads
8
Package Type
DFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
