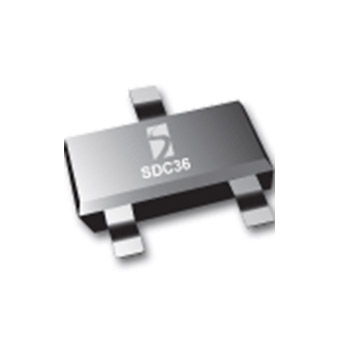

SDC36
The SDC36 is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications. The SDC36 protects the components from over-voltages caused by electrostatic discharge (ESD), electric fast transients (EFT) and tertiary lightning.
Features
- 350 watts peak pulse power (tp = 8/20 µs)
- Transient protection for data & power lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 2 A (1.2/50 µs)
- Replaces two discrete devices
- Low clamping voltage
- Low leakage current
- High surge capability
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- 2-wire, 3-wire, and 4-wire DC high-side proximity switches
- Digital sensor input protection
- Industrial controls
- 24 V – 33 V DC supply protection
アプリケーション
Packaging
- SOT-23
- 3000 pcs. Tape & Reel
Order Codes
- SDC36.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SDC36
Part Description
TVS DIODE ARRAY FOR PROXIMITY SWITCH INPUT PROTECTION
# of leads
3
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
mySemtech
