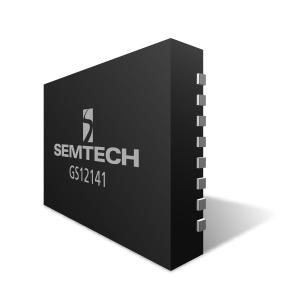

GS12141
Not recommended for new designs.
Please use the GS12341 for new designs.
The GS12141 is a low-power, multi-rate, serial digital retiming cable equalizer supporting 12G UHD-SDI. It is designed to equalize and restore signals received over 75Ω coaxial cable, automatically recover the embedded clock from the digital video signal and re-time the incoming data.
Features
- Multi-standard operation from 1Mb/s to 11.88Gb/s
- Automatic cable equalization:
- SMPTE ST 2082-1, ST 2081-1, ST 424, ST 292-1 and ST 259 compliant input
- Support for DVB-ASI at 270Mb/s and MADI at 125Mb/s
- Performance optimized for 11.88Gb/s. Typical equalized cable lengths of Belden 1694A cable:
- 70m at 12Gb/s
- 90m at 6Gb/s
- 180m at 3Gb/s
- 240m at 1.5Gb/s
- 300m at 270Mb/s
- Low power operation: approx. 320mW
- Automatic power down on loss of signal
- Automatic cable length detect
- Single 1.8V power supply operation
- GSPI serial control and monitoring interface
- Dual differential output support DC-coupling from
- 1.2V to 2.5V CML logic
- Second output can be disabled for power saving
- Individually selectable output pre-emphasis to
- compensate for up to 20” FR4 at 11.88Gb/s
- Cable equalizer bypass
- Manual bypass mode for low data rates
- Configurable automatic bypass for low data rates
- Programmable carrier detect with squelch threshold adjustment
- On-chip 100ohm differential output data termination
- Four configurable GPIO pins for control or status monitoring
- Wide operating temperature range: -40ºC to +85ºC
- Small 6mm x 4mm 40-pin QFN
- Pb-free and RoHS-compliant package
- Next Generation 3D / 2D HFR HDTV and 2K D-Cinema, UHDTV1 and 4K D-Cinema end-equipment: Cameras, Monitors, Switchers etc.
- Next Generation 3G, 6G, and 12G UHD-SDI infrastructures designed in support of UHDTV2, UHDTV1, 4K D-Cinema and 3D HFR and HDR production image formats.
アプリケーション
Order Codes
- GS12141-INE3: Lead-Free, RoHS Compliant, Tray-490 Pieces
- GS12141-INTE3: Lead-Free, RoHS Compliant, Tape and Reel-250 Pieces
- GS12141-INTE3Z: Lead-Free, RoHS Compliant, Tape and Reel-2500 Pieces
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
GS12141
Part Description
12G UHD-SDI RETIMING ADAPTIVE CABLE EQUALIZER
# of leads
40
Package Type
QFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
3
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
