One-Channel Hub
Reference Design

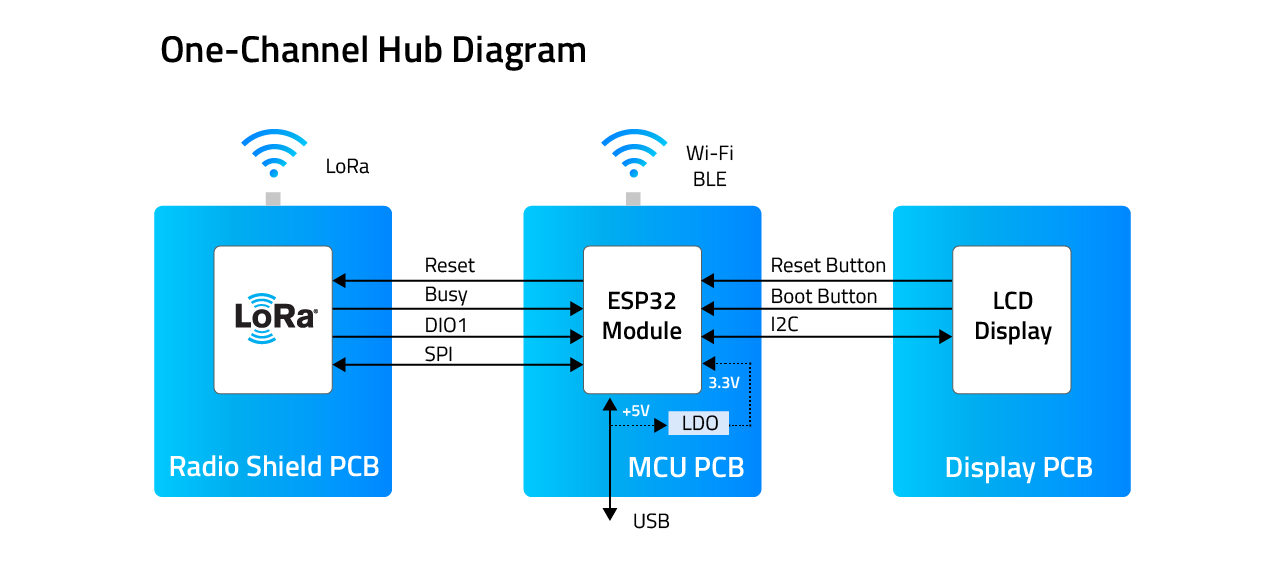

The One-Channel Hub reference design provides LoRaWAN network connectivity utilizing the lowest cost solution available by incorporating Semtech's LoRa sub-GHz transceiver with a low cost Espressif MCU, and adds an LCD display for simple user operation. Currently compatible with SX1261, SX1262, SX1268, LR1121 and LLCC68.
Features
The reference design consists of :
- Semtech transceiver Mbed shields for cost vs. performance trade-offs
- LCD display for easy setup and usage
- Wi-Fi backhaul connectivity
- Web-based configuration
- Portable travel gateway that can be powered by USB power bank
- Low-cost spot coverage for LoRaWAN networks
- Consumer starter kits for LoRaWAN devices
アプリケーション
Packaging

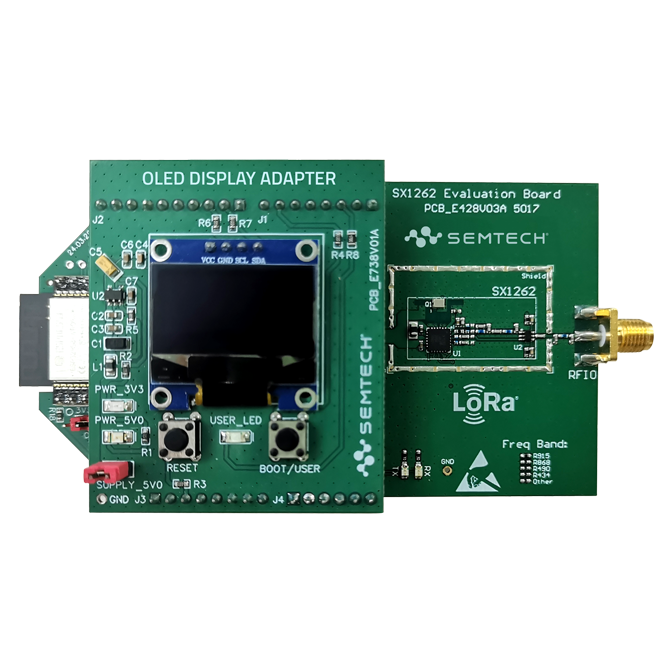

- The LRWHUB1EVK1A contains an ESP32-S3 shield adapter board and an OLED display adapter board
- LoRa Shields ordered separately
- Some assembly required
Order Codes
- LRWHUB1EVK1A for SX1261, SX1262, SX1268, LR1121 & LLCC68 Gateway Development Kit
- See table below for LoRa Shield ordering codes
| Transceiver IC | Region | Ordering Code | Order Now |
|---|---|---|---|
| SX1261 | EU868 | SX1261MB1LBAS (Available in SX1261DVK1BAS) | Buy Now |
| SX1262 | US915 | SX1262MB1LCAS (Available in SX1262DVK1CAS) | Buy Now |
| SX1268 | CN490 | SX1268MB1LGAS (Available in SX1268DVK1GAS) | Buy Now |
| LLCC68 | EU868 | LLCC68MB2BAS | Buy Now |
| LR1121 | EU868 | LR1121MB1DIS (Available in LR1121DVK1TBKS) | Buy Now |
| LR1121 | US915 | LR1121MB1DIS (Available in LR1121DVK1TCKS) | Buy Now |
| LR1121 | CN490 | LR1121MB1GIS (Available in LR1121DVK1TGKS) | Buy Now |
