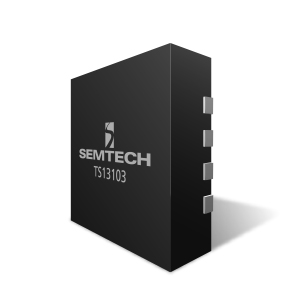

TS13103
Product inactive. Information on this page is for reference only.
The TS13103 is a galvanically isolated 60V power switch device with bi-directional blocking. The device includes an integrated 290m high voltage switch allowing high efficiency switching of power loads or other high current applications. CLK input pin control sequences support switching options, including immediate on/off, zero-volt switch-on, zero-current switch-off, dither modes, as well as latching and non-latching behavior.
Features
- Low Quiescent Operating Currents
2μA in OFF state
5μA in ON state - Supports galvanically-isolated I/O
- Galvanic power transfer from load supply
- Addressable for minimum GPIO usage
Supports four physical address configurations - Single control signal for on/off input (CLK)
Microcontroller-compatible 1.7V to 5.5V input levels
Configurable switching options - Switch Characteristics:
Bi-directional blocking in OFF state
Single switch device
60V switch and 290mΩ on-resistance
Up to 2.5A operating current - Package Options
16 lead QFN package – 3x3mm, 1.0mm max height - Operating Modes
Zero-cross ON / OFF
Immediate ON / OFF
Dithering Mode for system power sharing
Switch state polling
- Power load / rail switching
- Input supply multiplexing
- Isolated power supplies
- Solid state relays
- HVAC control
- Sprinkler control
- Internet of Things (IoT)
アプリケーション
Packaging
- Packaged in a 16 lead QFN package – 3x3mm, 1.0mm max height
Order Codes
- TS13103-QFNR
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
