概要

RClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD and EOS. They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.

Packaging

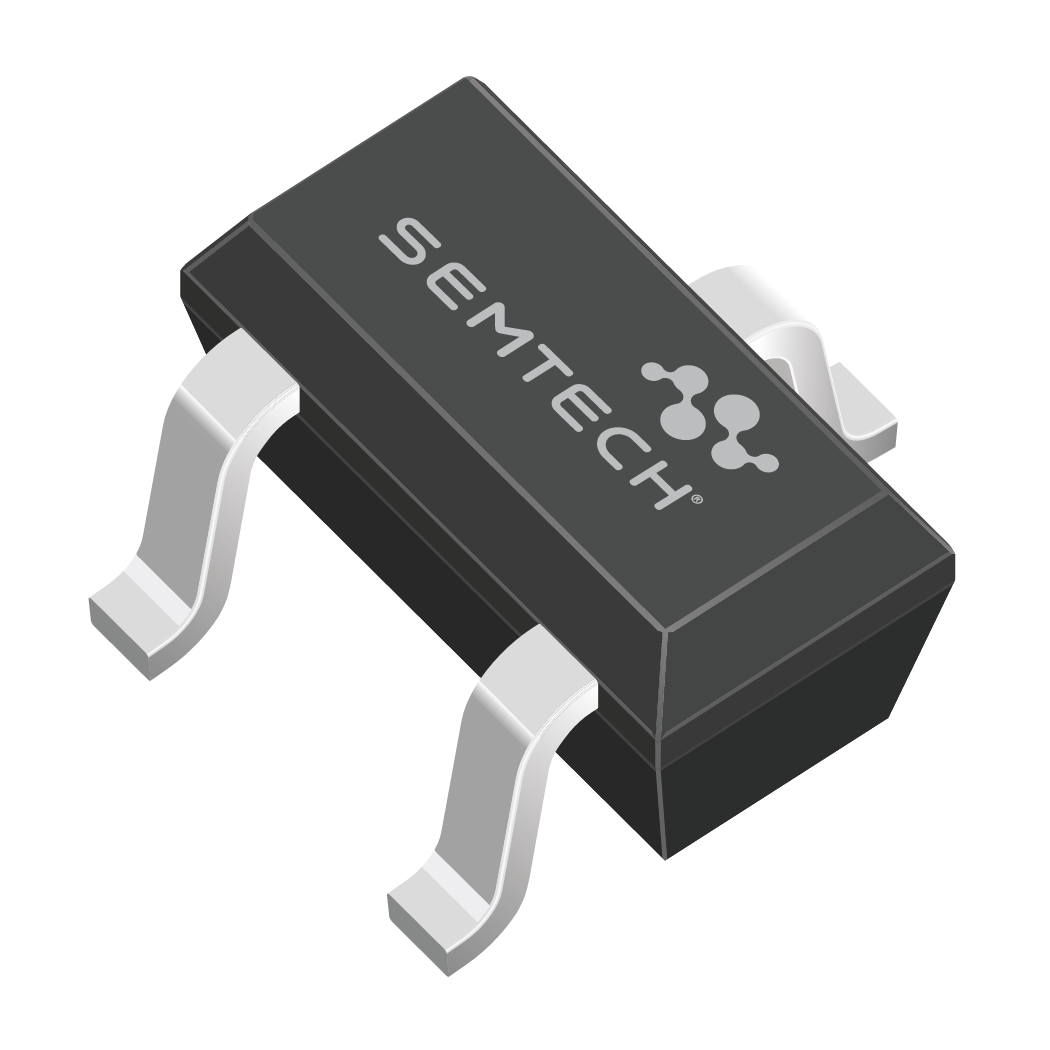

  • SOT23 3L

Order Codes

  • RClamp04022S.C, 3000 (Qty per Reel), 7 Inch (Reel Size)

PB Free/ROHS

Learn More →

Features

  • High ESD withstand voltage
    • IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
    • IEC 61000-4-5 (Lightning): 18A (8/20μs)
    • IEC 61000-4-4 (EFT): 4kV, 80A
  • Low capacitance: 0.75pF Max
  • Protects two high speed data lines
  • Working voltage: 4V
  • Low ESD clamping voltage
  • Low dynamic resistance: 0.12Ω typical
  • Low reverse leakage current
  • Solid-state silicon-avalanche technology

アプリケーション

  • USB 2.0
  • LVDS
  • GPIO
  • Analog Video
  • USB Type-C
  • キーパッド
