Transient diverting suppressors (TDS), part of the SurgeSwitch™ portfolio, are designed to provide protection against electrical overstress events (EOS). These devices have superior clamping and stability over temperature when compared to standard transient voltage suppressor (TVS) devices.
- Transient protection for:
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) ±4kV (100kHz & 5kHz, 5/50ns)
- IEC 61000-4-5 (Surge) 35A (8/20µs)
- IEC 61000-4-5 (Surge) ±1kV (1.2x50µs)
- Protects one I/O or power line
- Working voltage: 30V
- Constant clamping voltage across the rated peak pulse current range and temperature range
- High peak pulse current capability: 35A (tp = 8/20μs)
- DFN 1.6mm x 1.6mm x 0.55mm 6-Lead
- Internet of Things (IoT) devices
- Notebook & tablet PC
- USB PD
- VBUS lines
- Solid state switches
- USB Type-C
- I/O link
- Storage devices

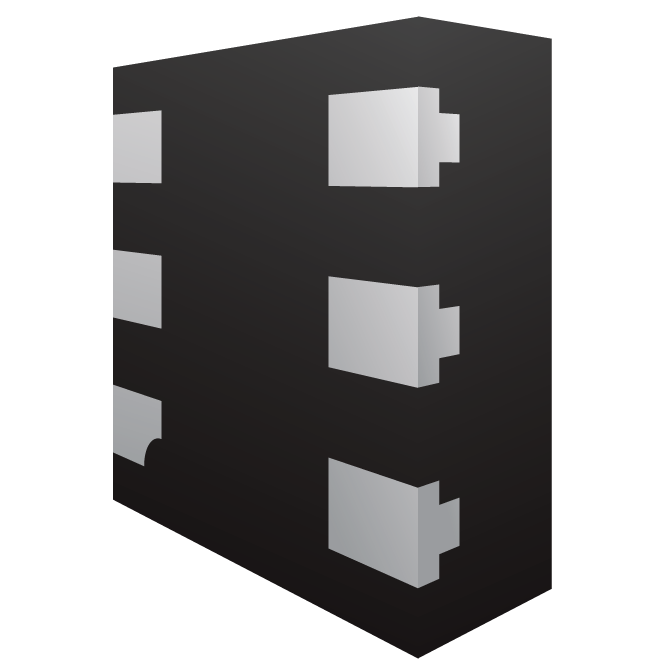

- 6-pin DFN: 1.6 x 1.6 x 0.55mm
- TDS3011P.C: Pb-free, halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
