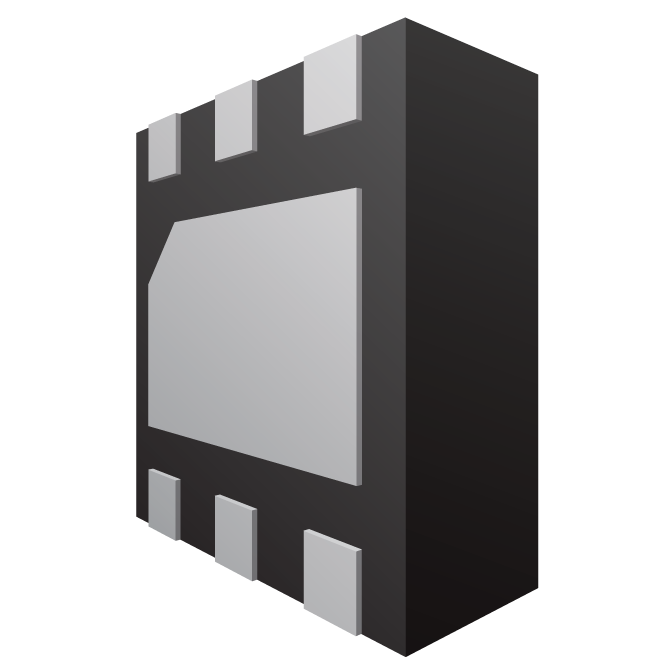

Semtech's SurgeSwitch transient diverting suppressors (TDS) are designed to provide high energy electrical overstress (EOS) protection with superior clamping and temperature characteristics when compared to standard transient voltage suppressor (TVS) devices. The device uses a surge rated FET as the main protection element. During an EOS event, transient voltage increases beyond the rated breakdown voltage of the device and in turn, the FET switches on and conducts transient current to ground. The TDS clamping voltage is nearly constant across the rated peak pulse current range due to the extremely low ON Resistance of the FET. Lower clamping voltage at maximum peak pulse current makes them more suitable for protecting today’s sensitive ICs, when compared to standard TVS diodes. TDS2261P is designed to work on voltage buses or data lines with an operating voltage as high as 22V. It is rated for a high-energy transient current up to 40A (tp = 8/20us) and may be used to meet the common industrial voltage surge standard of +/-1kV per IEC61000-4-5 (RS = 42 Ohms, CS= 0.5uF).
