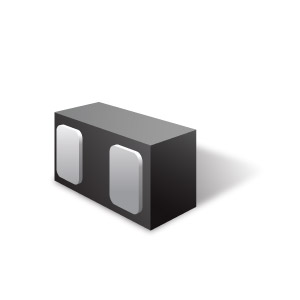

µClamp3331ZA features extremely good electrostatic discharge (ESD) protection characteristics highlighted by extremely low dynamic resistance, low peak ESD clamping voltage, and high ESD withstand voltage (+/-30kV contact per IEC 61000-4-2). The µClamp3331ZA device will protect one data or power line operating at 3.3 Volts.
