uClamp3312T
The μClamp3312T TVS diode is specifically designed to meet the performance requirements of Gigabit Ethernet interfaces. They are designed to protect sensitive PHY chips from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events (CDE).
Features
- High ESD withstand Voltage: +/-30kV (Contact/Air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- Flow-through design simplifies layout
- Protects two line pairs
- Low reverse current: 10nA typical (VR=3.3V)
- Low variation in capacitance vs. bias voltage: 1.3pF Typical (VR = 0 to 3.3V)
- Working voltage: 3.3V
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- Integrated magnetics/RJ-45 connectors
- LAN/WAN Equipment
- Security Cameras
- Industrial Controls
- Notebooks & Desktop Computers
アプリケーション
Packaging

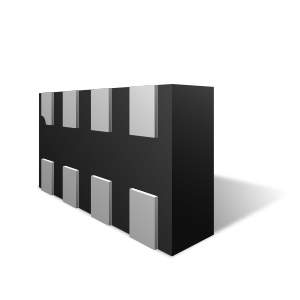

- SLP2010N8T
Order Codes
- uClamp3312T.TCT - Lead-free, Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP3312T
Part Description
LOW VOLTAGE UCLAMP FOR GIGABIT ETHERNET
# of leads
8
Package Type
SLP-T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
