uClamp2801T
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- IEC 61000-4-5 (Lightning) 4A (8/20μs)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- Low clamping voltage
- Working voltage: 28V
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- USB Voltage Bus
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- MP3 Players
アプリケーション
Packaging

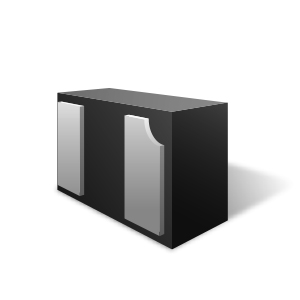

- SLP1006P2T
Order Codes
- uClamp2801T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP2801T
Part Description
LOW PROFILE UCLAMP 1-LINE ESD PROTECTION
# of leads
2
Package Type
SLP1006P2T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
