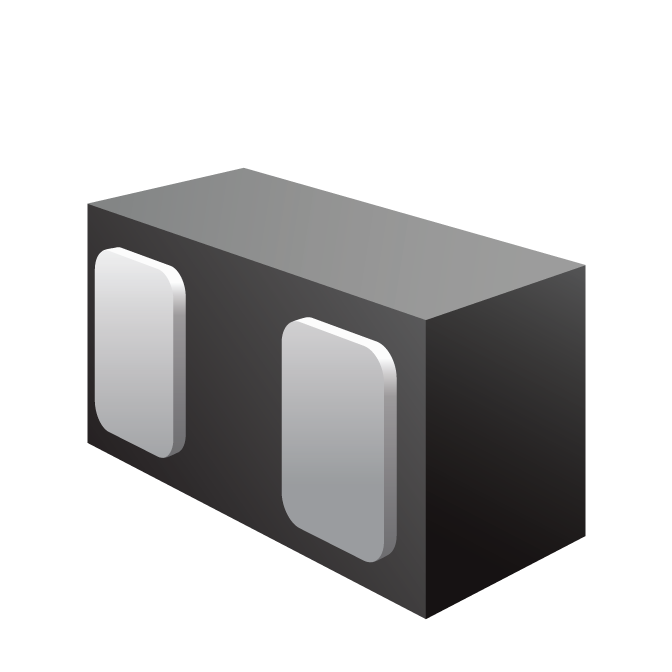

RClamp®01811ZA is a low capacitance electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. RClamp01811ZA offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
- ESD withstand voltage - IEC 61000-4-2 (ESD): ±12kV (Contact), ±20kV (Air)
- Low ESD clamping
- Low capacitance: 1.2pF maximum
- Protects one high-speed data line
- Working voltage: 1.8V
- Low reverse leakage current: 100nA max at VR =1.8V
- Solid-state silicon-avalanche technology
- Cellphones and accessories
- Notebooks and handhelds
- DFN 0.60 x 0.30 x 0.25mm 2-Lead
