TClamp®2492S is specifically designed to provide secondary surge and electrostatic discharge (ESD) protection for Class-H VDSL2 line drivers. It features high surge current capability of 35A (tp=8/20μs) and low clamping voltage, making them ideal for use in harsh transient environments.
- Transient protection to
- IEC 61000-4-2 (ESD) 30kV (contact & air)
- IEC 61000-4-4 (EFT) 2kV (5/50ns)
- IEC 61000-4-5 (lightning) 35A (8/20μs)
- Bias diodes prevent charging of transient voltage suppression (TVS) capacitance
- Working voltage: 24V
- Low capacitance: 3.5pF maximum
- Solid-state silicon-avalanche technology
- ADSLx / VDSLx secondary protection
- VDSL2 Class-H line driver secondary protection
- Access equipment
- Central office equipment
- Customer premise equipment

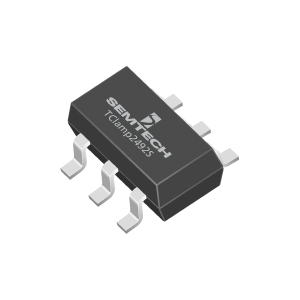

- JEDEC SOT-23 6L package: 2.80 x 2.92 x 1.10 mm
- TClamp2492S.C: Pb-free, halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
