SRV05-4
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Features
- ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact), IEC 61000-4-4 (EFT) 40 A (5/50 ns), IEC 61000-4-5 (Lightning) 12 A (8/20 µs)

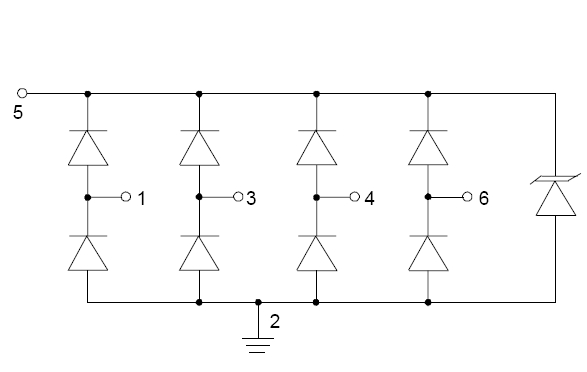

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects four I/O Lines
- Low capacitance: 3 pF typical
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- USB 2.0 power & data line protection
- Video graphics cards
- Monitors and flat-panel displays
- Digital video interface (DVI)
- 10/100/1000 Ethernet
- Notebook Computers
- SIM port
- ATM interfaces
- IEEE 1394 FireWire® ports
アプリケーション
Packaging

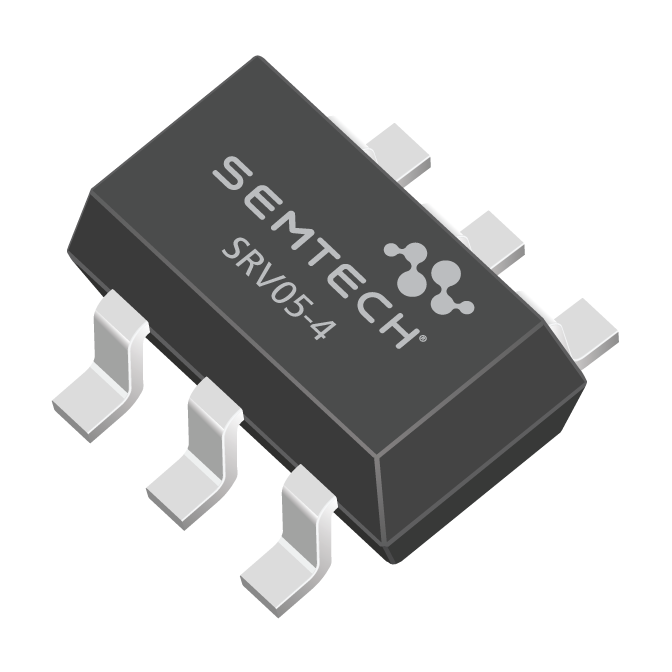

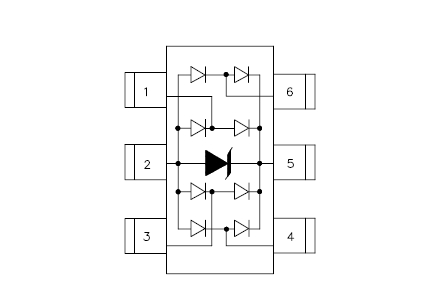

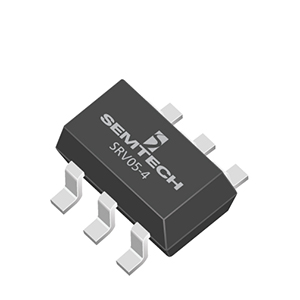

- SOT-23 6L
- 3000 pcs. Tape & Reel
Order Codes
- SRV05-4.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SRV05-4A
Part Description
4-LINE 5V 5PF 12A
# of leads
6
Package Type
SOT-23 6L
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
