Semtech SRDA70-4
RailClamp® 500 Watt Low-Capacitance 15 pF / Line Array
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SRDA70-4 has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
概要
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 1 kV, 24 A (8/20 µs)
- Array of surge-rated diodes
- Protects four I/O lines
- Low capacitance for high-speed interfaces
- High surge capability
- Low forward voltage characteristics
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
アプリケーション
- Latch-up protection
- Microcontroller input protection
- Token ring
- I2C bus protection
- Video line protection
- Set-top box I/O
- LAN/WAN equipment
Packaging

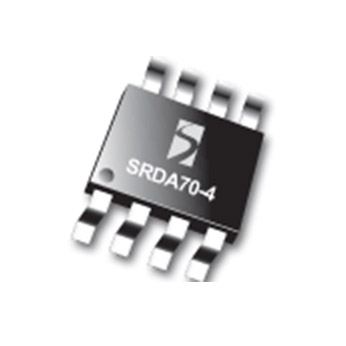

- SO-8
- 500 pcs. Tape & Reel
- 95 pcs. Tube
Order Codes
- SRDA70-4.T
- SRDA70-4.TBT
Diagrams and Specs

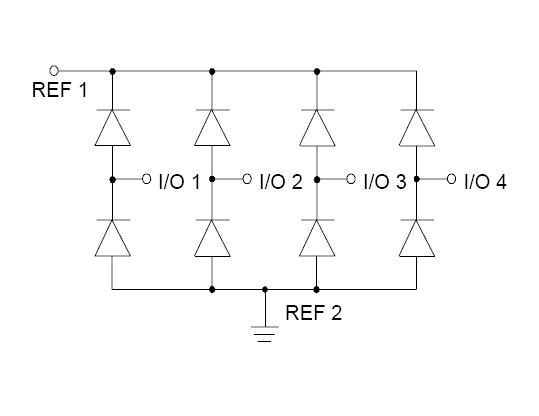

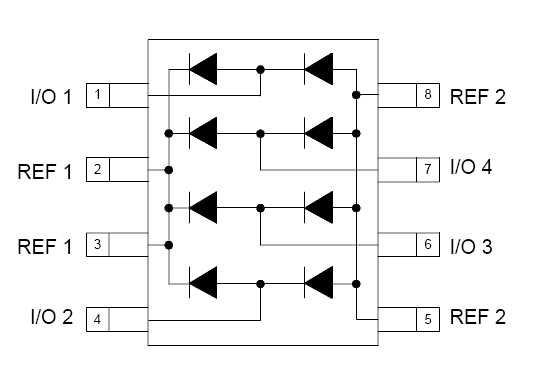

Block Diagram
Click diagram to enlarge
