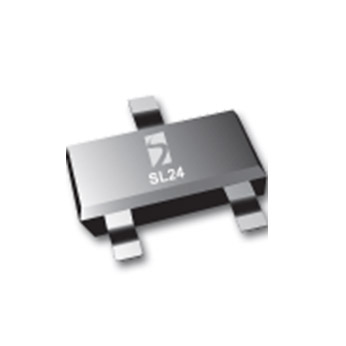

The SL series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events.
- 24 V working voltage
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- Small package for use in portable electronics
- Two devices will protect one line
- Low capacitance for high-speed data lines
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- High-speed data lines
- Cellular handsets AND accessories
- Universal serial bus (USB) port protection
- Portable instrumentation
- LAN/WAN equipment
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
