Pb(Lead)-Free/RoHS-Green Info

Base Part Number (1)

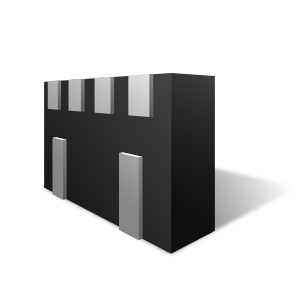

RCLAMP3624T
Lead Free Part Number (1A), (13)
RCLAMP3624T.TCT
Part Description
ESD PROTECTION FOR UUSB INTERFACES
# of leads
Package Type
SLP-T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
REACH SVH C(223) EC1907/2006 (18)
JIG 101 A & B (12)
YES
RoHS / RoHS 2 2011/65/EC (4) (5)
RoHS 2/3 Amend 2015/863 (7)
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
Halogen Free / Low IEC 61249-2-21/JS709C (20)
Proposition 65 (21)
Packaging Material 94/62/EC (17)
RoHS Compliant by Exception (8)
NO
Green Reportable Substance (9) Antimony (Sb)/ Berylliuum (Be)
Phosphorus (P) & (Red P)
Compliant (ND4) or below threshold PPM (7)
ND4
Declarations and Reports
IPC-1752-2
Please consult with your Semtech Sales Rep
