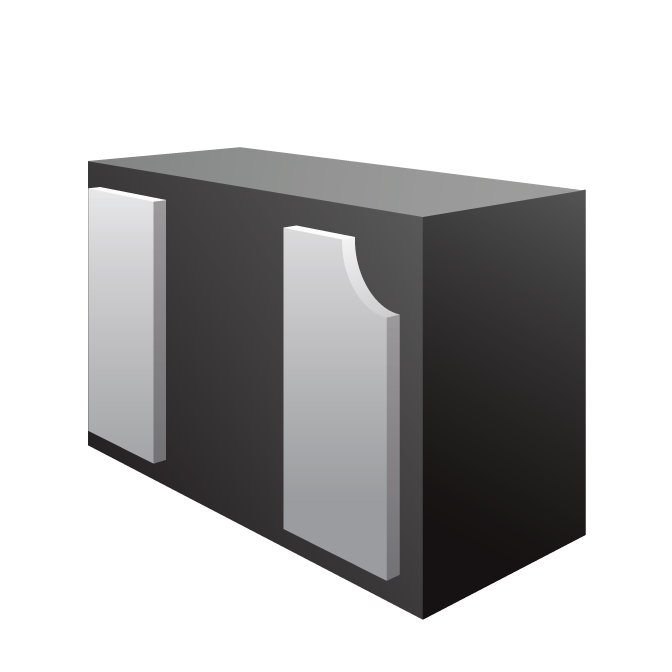

RClamp®3361P is an ultra-low capacitance electrostatic discharge (ESD) protection device specifically designed to protect high-speed Ethernet lines. It offers desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation. The device features high surge capability of 7A (tp = 8/20 μs).
- ESD withstand voltage: ±15kV (air), ±12kV (contact) per IEC 61000-4-2
- High surge capability: 7A (tp = 8/20 μs, Rs = 2Ω) per IEC 61000-4-5
- Ultra-low capacitance: 0.2pF typical
- Protects one high-speed data line
- Working voltage: ±3.3V
- Low reverse leakage current: 50nA max at VR=3.3V
- Low insertion loss: 0.39dB (typical) at 5GHz
- Large operating bandwidth: 11.3GHz
- Solid-state silicon-avalanche technology
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- USB 3.0 and USB 3.1
- 1.0 x 0.6 x 0.5mm - 15,000 pcs
